1
Engine displacement
900
2
Year
2018
3
Trim
RANGER XP 900 BASE / EPS
4
Parts Catalog

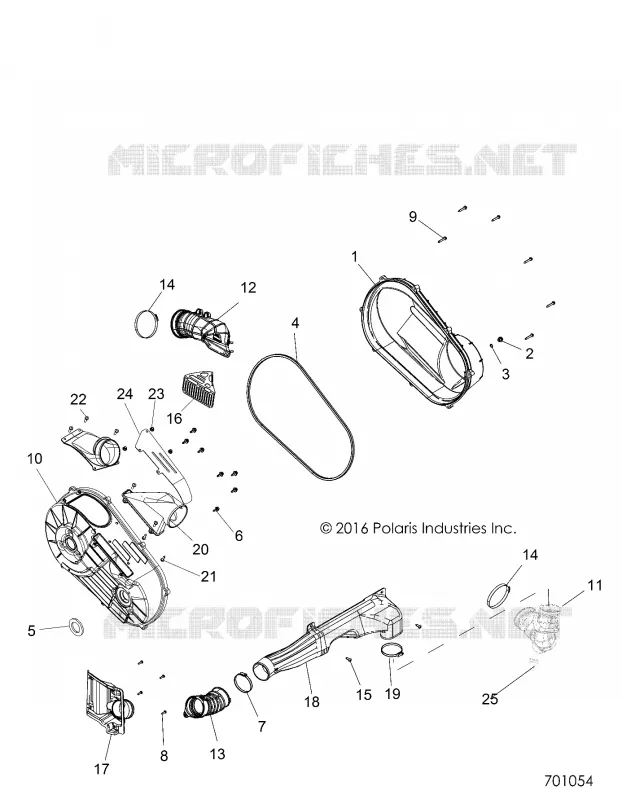

DRIVE TRAIN, CLUTCH COVER AND DUCTING
5
Parts Diagram
Parts Catalog
BARKE CALIPER MOUNTING
by
DRIVE TRAIN, CLUTCH, SECONDARY
DRIVE TRAIN, CLUTCH COVER AND DUCTING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
1
ASM. COVER CLUTCH OUTER [INCL. 17 19 20]
2207124
$351,74 Unit Price incl. VAT
2
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
3
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
4
SEAL COVER CLUTCH OUTER
5521831
5526449
$78,74 Unit Price incl. VAT
5
SEAL-COVER PTO
5813708
$41,99 Unit Price incl. VAT
6
SCR-TFHFL-M6X1.0X20 S/R ZOD
7519278
$9,44 Unit Price incl. VAT
7
CLAMP-BAND NARROW 60-80MM
7080707
$5,76 Unit Price incl. VAT
8
SCREW-10X5/8-HI/LO PN-T25 TRX-M
7518238
$7,34 Unit Price incl. VAT
9
SCREW-NXFL-M6X35 ZOD HILO
7519330
$7,34 Unit Price incl. VAT
10
ASM. COVER CLUTCH INNER [INCL. 10-15]
2635158
$314,99 Unit Price incl. VAT
11
HOSE CLUTCH AIR INLET
5416021
$136,49 Unit Price incl. VAT
12
HOSE CLUTCH AIR OUTLET
5414537
$178,49 Unit Price incl. VAT
13
ISOLATOR EXHAUST LOWER
5414854
$89,24 Unit Price incl. VAT
14
CLAMP-WORM DRIVE 3.69 DIA
7081626
$14,69 Unit Price incl. VAT
15
SCR-TX TRUSS-#14X3/4 HI/LO ZBK
7519045
$6,29 Unit Price incl. VAT
16
BRACKET SCREEN BELT
5256957
$62,99 Unit Price incl. VAT
17
INTAKE FENDER REAR
5450695
$125,99 Unit Price incl. VAT
18
DUCT INTAKE CLUTCH
5451066
$120,74 Unit Price incl. VAT
19
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
20
DUCT-CLUTCH AIR INLET
5439086
$73,49 Unit Price incl. VAT
21
SCR-M6X1.0X20MM TX PH 8.8-B
7518546
$6,29 Unit Price incl. VAT
22
SCR-#14X3/4 HI/LO-PH-PN TRX-M
7519205
$3,14 Unit Price incl. VAT
23
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$7,34 Unit Price incl. VAT
24
BRKT-GUARD CLUTCH COVER
5256223
$68,24 Unit Price incl. VAT
25
PLUG-DRAIN
5414472
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
