SUSPENSION, REAR TORQUE ARM FOR 600 RMK 144 FROM 2020

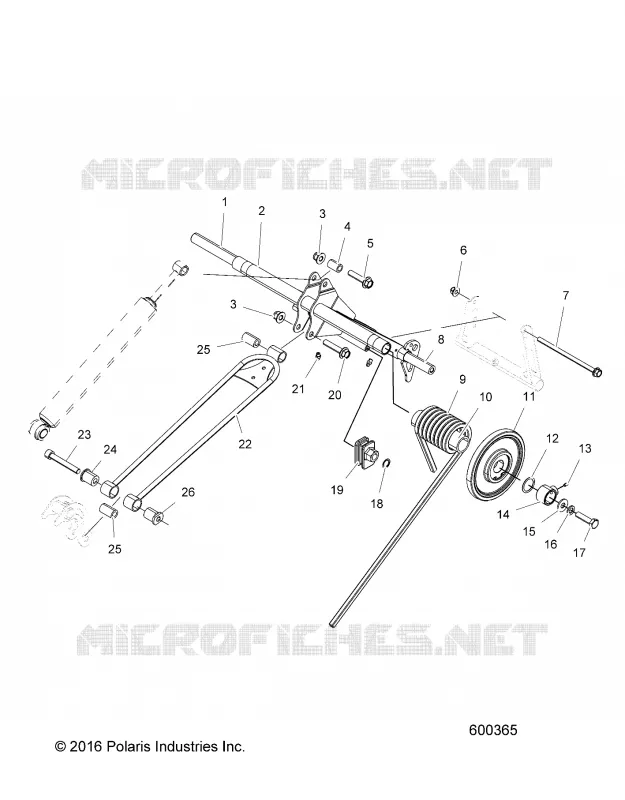

SUSPENSION, REAR TORQUE ARM

1

SHAFT

5137223

$104,99 Unit Price incl. VAT

2

TORQUE ARM REAR E-COAT

1543511329

$398,99 Unit Price incl. VAT

3

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

4

BUSHING

5136569

$15,74 Unit Price incl. VAT

5

SCR-M10X1.5X45 8.8 HX/FL ZOD

7518958

$6,29 Unit Price incl. VAT

6

NUT- M8X1.25 FLG NYLOC-OLIVE D

7547332

$7,34 Unit Price incl. VAT

7

SCR-HXFL-M8X1.25X150 8.8 ZOD

7519200

$17,84 Unit Price incl. VAT

8

SHAFT

5337198

$52,49 Unit Price incl. VAT

9

SPRING TORSION .359/77 BLACK RH [STD]

7041630067

$209,99 Unit Price incl. VAT

9

SPRING TORSION .375/77 BLK LH [OPT]

7041942329

$220,49 Unit Price incl. VAT

9

SPRING TORSION .347/77 BLK RH [OPT]

7041628067

$209,99 Unit Price incl. VAT

9

SPRING TORSION .359/77 BLACK LH [STD]

7041629067

$209,99 Unit Price incl. VAT

9

SPRING TORSION .347/77 BLK LH [OPT]

7041627067

$209,99 Unit Price incl. VAT

9

SPRING TORSION .375/77 BLK RH [OPT]

7041943329

$209,99 Unit Price incl. VAT

10

SLEEVE TORSION SPRING

5434337

$13,64 Unit Price incl. VAT

11

BEARING

3514303

$20,99 Unit Price incl. VAT

11

RING RETAINING

7718407

$9,44 Unit Price incl. VAT

11

ASM. WHEEL BOGIE

1590539

$89,24 Unit Price incl. VAT

12

WASHER SPRING

7571605

$11,54 Unit Price incl. VAT

13

SCR-10-24-3/8 SOC/SET-Y

7518262

$7,34 Unit Price incl. VAT

14

SPACER

5135424

$34,64 Unit Price incl. VAT

15

WSHR-M10.5X25X2.4 ZPC

7556559

$6,29 Unit Price incl. VAT

16

WSHR-M10 SPRING LOC ZPC

7556558

$4,19 Unit Price incl. VAT

17

SCR-HH M10X40 10.9 ZPC P80

7519223

$7,34 Unit Price incl. VAT

18

CLIP PUSH ON

7080394

$4,19 Unit Price incl. VAT

20

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

21

FITTING-LUBRICATION 1/4-28

7080424

$9,44 Unit Price incl. VAT

22

ASM. ROD SHOCK

1543561329

$173,24 Unit Price incl. VAT

23

SCR-SH-M10X1.5X70 12.9 ZOD P80

7520368

$11,54 Unit Price incl. VAT

24

BUSHING RTS

5140273

$20,99 Unit Price incl. VAT

25

BUSHING

5137360

$7,34 Unit Price incl. VAT

26

BUSHING RTS THREADED

5140274

$20,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
