1
Engine displacement
0
2
Year
1994
3
Trim
EURO LITE - E943433
4
Parts Catalog

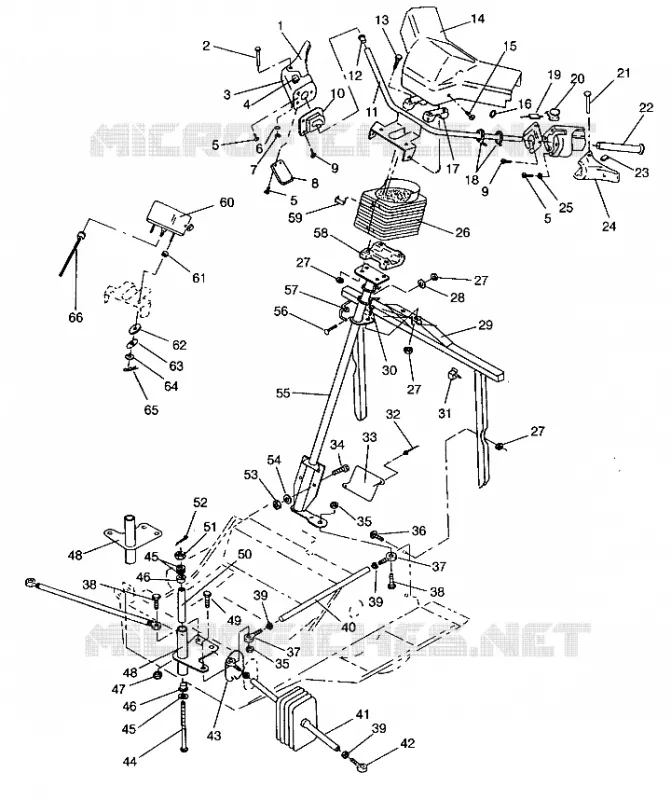

STEERING ASSEMBLY LITE E943433 (49273427340013)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI LITE E943433 (49273427340011)
by
REAR TORQUE ARM LITE E943433 (49273427340020)
STEERING ASSEMBLY LITE E943433 (49273427340013)
1
2
3
4
5
5
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
27
27
28
29
30
31
32
33
34
35
35
36
37
37
37
37
37
37
37
37
38
38
39
39
39
39
39
39
39
39
39
39
39
39
40
41
42
42
42
42
43
44
45
45
46
46
47
48
48
48
48
48
48
48
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
1
LEVER-THROTTLE
5430601
Not Available
2
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
3
BLOCK THROTTLE/BRAKE Substituted by 5431592
5431265
5431592
$73,49 Unit Price incl. VAT
4
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
5
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
6
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
7
WASHER
7555730
$7,34 Unit Price incl. VAT
8
PLATE BLK WIREHOLDER Substituted by 5432261
5240256067
5432261
$47,24 Unit Price incl. VAT
9
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
10
ADAPTOR BLOCK
5430604
$26,24 Unit Price incl. VAT
11
HANDLEBAR ADJ BLK.
1843036067
Not Available
12
CAPLUG(10)
7080467
Not Available
13
BOLT (10)
7512265
$7,34 Unit Price incl. VAT
14
COVER H#BAR(W/SPEEDO.MOD)
5431423
Not Available
15
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
16
O RING
5410591
Not Available
17
BLOCK H#BAR UPPER BLK.
5630382067
Not Available
18
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
19
SWITCH BRAKE LIGHT
4110105
Not Available
20
SWITCH DIMMER
4110104
Not Available
21
RIVET
7661617
$7,34 Unit Price incl. VAT
22
GRIP H#BAR BLACK Substituted by 5432634
5410272067
$52,49 Unit Price incl. VAT
23
CLIP-SPEED.(10)
7670044
$9,44 Unit Price incl. VAT
24
LEVER-BRAKE
5430602
$68,24 Unit Price incl. VAT
25
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
26
BOOT STRG.POST
5431234070
Not Available
27
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
28
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
29
HOOP STRG BLK.
1011863067
Not Available
30
BOLT(10) Substituted by 7512269
7515101
Not Available
31
CLIP (10)
5222672
Not Available
32
RIVET-3/16-.090-.290
7661637
$2,09 Unit Price incl. VAT
33
BRKT BOLT RETAINER
5222421
Not Available
34
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
35
NUT FLEXLOC(10) Substituted by 7542411
7542452
7542411
$6,29 Unit Price incl. VAT
36
BOLT CARRIAGE
7512298
$7,34 Unit Price incl. VAT
37
ROD END RH Substituted by 7060167
7060152
7060167
$99,74 Unit Price incl. VAT
37
ROD END LH Substituted by 7060166
7060151
7060166
$99,74 Unit Price incl. VAT
38
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
39
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
39
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
40
ROD DRAG LINK
5333005
Not Available
41
ROD TIE BLK.
5333006067
Not Available
42
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
42
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
43
RETAINER BOOT
5222283
Not Available
44
BOLT(10)
7512572
$23,09 Unit Price incl. VAT
45
WASHER(10)
7555817
Not Available
46
BUSHING
5630371
$8,07 Unit Price incl. VAT
47
Nut
7542403
Not Available
48
STRG.CTR.WELD RH BLK. (StarLite GT)
1823146067
Not Available
48
FROG LH STRG BLK(LITE) Substituted by 1820776-067 (Lite GT)
1823141067
Not Available
49
SCREW(10)
7515434
Not Available
50
BUSHING SPACER
5333009
$19,20 Unit Price incl. VAT
51
NUT CASTLE(10)
7542523
Not Available
52
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
53
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
54
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
55
POST STRG. BLK. (Lite GT)
1823155067
Not Available
56
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
57
RINGMOUNT RECOIL BLK.
5224442067
$34,32 Unit Price incl. VAT
58
BLOCK HANDLEBAR BLACK
5630187067
$73,49 Unit Price incl. VAT
59
CLIP STRG.BOOT(10)
7670073
Not Available
60
SPEEDO (KPH) EURO.
3280137
Not Available
61
SPACER
5410592
Not Available
62
SPACER SPEEDO.MTG. (Indy Lite)
5810442
Not Available
63
PLATE MTG (SPEEDO) (Indy Lite)
5211189
$19,94 Unit Price incl. VAT
64
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
65
HAIRPIN COTTER(10) (Indy Lite)
7660701
$3,66 Unit Price incl. VAT
66
CABLE SPEEDOMETER
3280113
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
