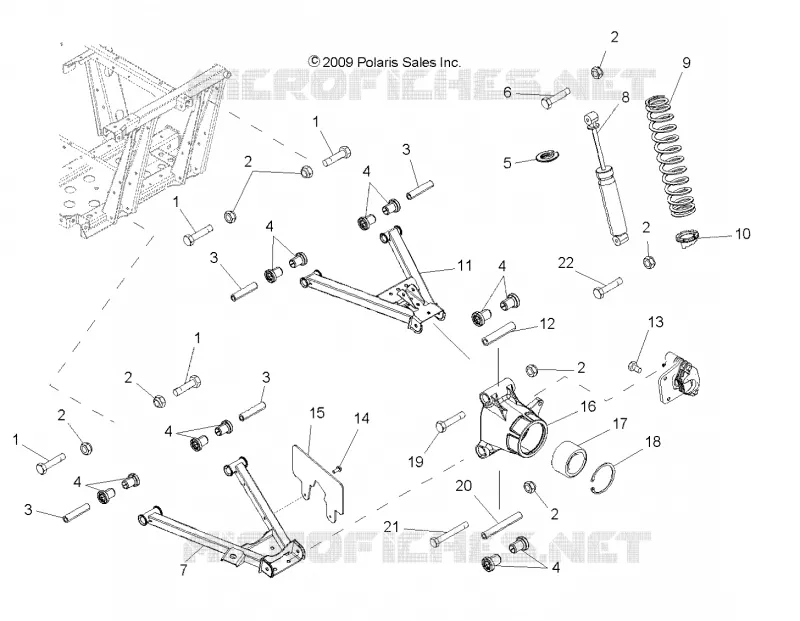

REAR SUSPENSION FOR RANGER CREW 800 - R12WH76AG/AR/EAH/EAV/EAW FROM 2012

FRONT SUSPENSION SHOCK

REAR SUSPENSION STABILIZER BAR

REAR SUSPENSION

1

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$17,84 Unit Price incl. VAT

2

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

3

SHAFT PIVOT 73.96MM

5137591

$10,49 Unit Price incl. VAT

4

BUSHING A-ARM. SHORT BLACK

5439270

$4,19 Unit Price incl. VAT

5

RETAINER-SPRING STEEL

5251753

$19,94 Unit Price incl. VAT

6

SCR-HXFL-M10X1.25X60 8.8 ZOD

7518563

$5,76 Unit Price incl. VAT

7

Arm. Control Lower Rear Black [Built 1/18/11 and After]

1018185067

$241,49 Unit Price incl. VAT

8

Shock Rear

7043491

$167,99 Unit Price incl. VAT

9

Spring Cloud Silver [AJ]

7043693385

$230,99 Unit Price incl. VAT

9

Spring White [EAW]

7043693133

$230,99 Unit Price incl. VAT

9

Spring Black [AG][AH][AR]

7043693067

$230,99 Unit Price incl. VAT

10

CAM-ADJUSTING SPRING STEEL

5253768

$68,24 Unit Price incl. VAT

11

Arm Control Upper Rear Black [Built 1/18/11 and After]

1018184067

$220,49 Unit Price incl. VAT

12

SHAFT PIVOT 89.71MM

5137592

$12,59 Unit Price incl. VAT

13

BOLT-M10X1.25X20 HXFLG-OLV D

7518558

$7,34 Unit Price incl. VAT

14

SCR-10-24X1/2 PHTXTRIRD SEMS-Y

7512084

$2,09 Unit Price incl. VAT

15

SHIELD CV REAR BLACK

5438639070

$36,74 Unit Price incl. VAT

16

CARRIER BEARING WHEEL LH

5136914

$128,09 Unit Price incl. VAT

16

CARRIER BEARING WHEEL RH

5136915

$128,09 Unit Price incl. VAT

17

BEARING-WHEEL 40X74X40MM

3514635

$73,49 Unit Price incl. VAT

18

RING-RETAINING 2.875 INTERNAL

7710440

$18,89 Unit Price incl. VAT

19

SCR-HXFL-M10X1.25X115 8.8 ZOD

7518566

$13,64 Unit Price incl. VAT

20

SHAFT PIVOT 115.11MM

5137593

$12,59 Unit Price incl. VAT

21

BOLT FLANGED

7518562

$13,64 Unit Price incl. VAT

22

SCR-HXFL-M10X1.25X115 8.8 ZOD

7518566

$13,64 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
