1
Engine displacement
90
2
Year
2003
3
Trim
SPORTSMAN 90
4
Parts Catalog
SWING ARM/FOOTREST
5
Parts Diagram
Parts Catalog
BUMPER / RACKSS
by
SEAT
SWING ARM/FOOTREST
1
2
3
4
5
6
7
8
9
10
10
11
11
12
12
13
13
14
14
15
15
16
17
17
18
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Bolt Pan Phillips
0450622
$4,19 Unit Price incl. VAT
2
Shield Heat
0450618
Not Available
3
Footrest RH
0451084
Not Available
4
Washer Plain
0450710
$2,09 Unit Price incl. VAT
5
Nut Nylon Lock
0450741
$5,76 Unit Price incl. VAT
6
Bolt
0450340
0450297
$9,44 Unit Price incl. VAT
7
Footrest LH
0451083
Not Available
8
Washer Plain
0450879
Not Available
9
NUT LOCK
0450808
$4,19 Unit Price incl. VAT
10
Cap Rubber
0450321
$6,29 Unit Price incl. VAT
11
FITTING GREASE
0450320
$12,59 Unit Price incl. VAT
12
RUBBER DUSTPROOF
0450317
$12,59 Unit Price incl. VAT
13
BUSHING GREASE RETAINER LOWER
0450314
$7,34 Unit Price incl. VAT
14
BUSHING GREASE RETAINER UPPER
0450313
$7,34 Unit Price incl. VAT
15
COVER WATERPROOF
0450316
$13,64 Unit Price incl. VAT
16
Arm Suspension LH
0451705
Not Available
17
Bolt Hex Washer Face
0450820
$10,49 Unit Price incl. VAT
18
Bushing
0450288
$16,79 Unit Price incl. VAT
19
Nut Lock Nylon
0450249
$7,34 Unit Price incl. VAT
20
Arm Suspension RH
0451706
Not Available

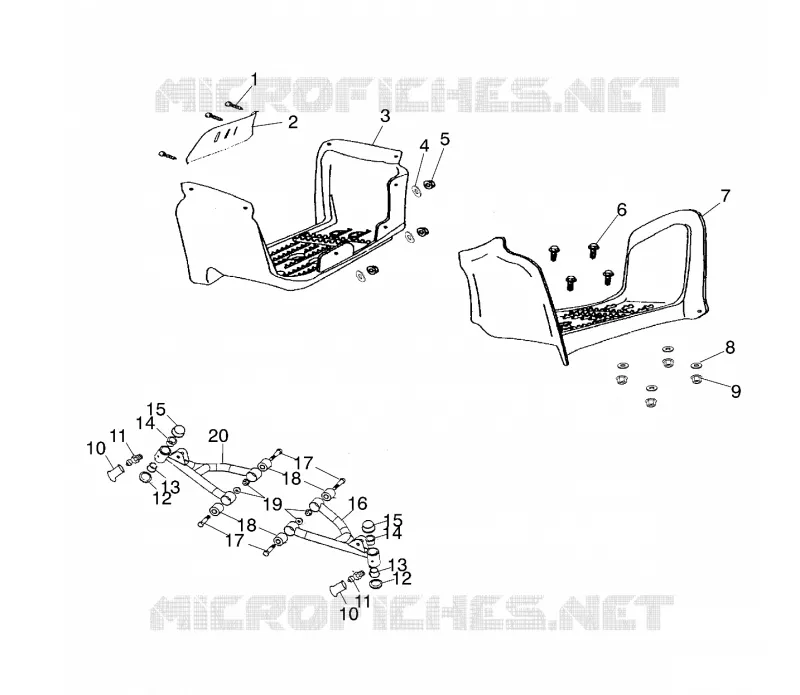

Find the detailed SWING ARM/FOOTREST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
