1
Engine displacement
1000
2
Year
2017
3
Trim
SPORTSMAN 1000 HIGH LIFTER
4
Parts Catalog
STEERING, STEERING POST ASM.
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR CONTROLS
by
WHEELS, REAR AND HUB

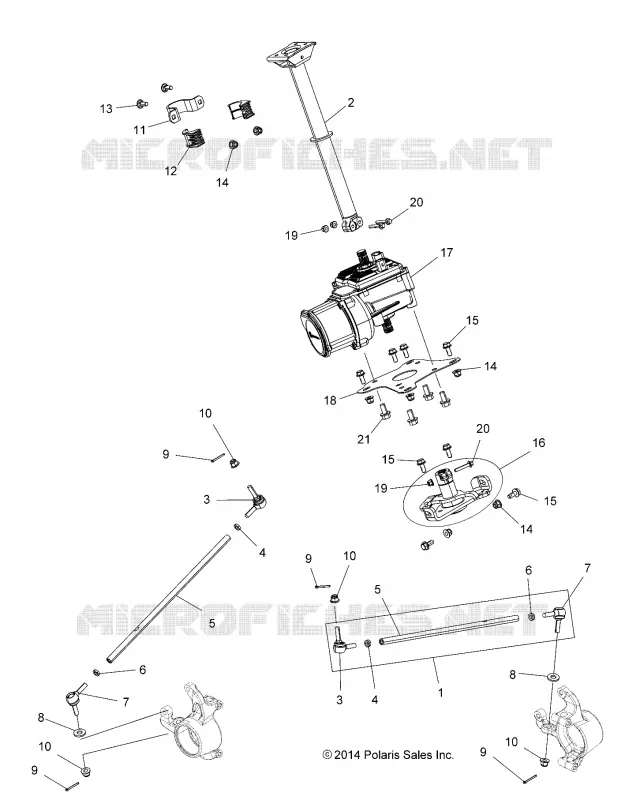

STEERING, STEERING POST ASM.
1
2
3
3
3
3
3
3
3
3
3
3
8
8
9
9
9
9
10
10
10
10
11
12
13
14
14
14
15
15
16
16
17
18
19
19
20
20
21
1
2
3
3
3
3
3
8
9
10
11
12
1
ASM. TIE ROD [INCL. 2-6]
1824007
$194,24 Unit Price incl. VAT
2
POST STEERING UPPER BLACK
1823781329
$220,49 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
WASHER
7556153
$3,66 Unit Price incl. VAT
9
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
10
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
11
BRKT-BUSHING STRAP
5262582
$52,49 Unit Price incl. VAT
12
BUSHING STEERING UPPER
5438904
$9,44 Unit Price incl. VAT
13
SCR-RHCAR-M8X1.25X20 8.8 ZY3
7518479
$7,34 Unit Price incl. VAT
14
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
15
BOLT-M8X1.25X20 HXHDFLG W/PTCH
7518450
$3,14 Unit Price incl. VAT
16
KIT-STEERING POST LOWER BOLTED [INCL. POST AND HARDWARE]
2206428
$314,99 Unit Price incl. VAT
17
ASM-POWER STEERING ATV
2413344
$3 527,99 Unit Price incl. VAT
18
BRACKET POWER STEERING BLACK
5254633329
$73,49 Unit Price incl. VAT
19
NUT-M6 FLANGE NYLOC
7547274
$2,09 Unit Price incl. VAT
20
SCR-M6X1.0X35 HX/FL-Y/D
7516827
$12,59 Unit Price incl. VAT
21
BOLT-M10X1.25X20 HXFLG-OLV D
7518558
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
