1
Engine displacement
1000
2
Year
2023
3
Trim
SCRAMBLER XP 1000 S 55"
4
Parts Catalog
BODY, CLUTCH COVER
5

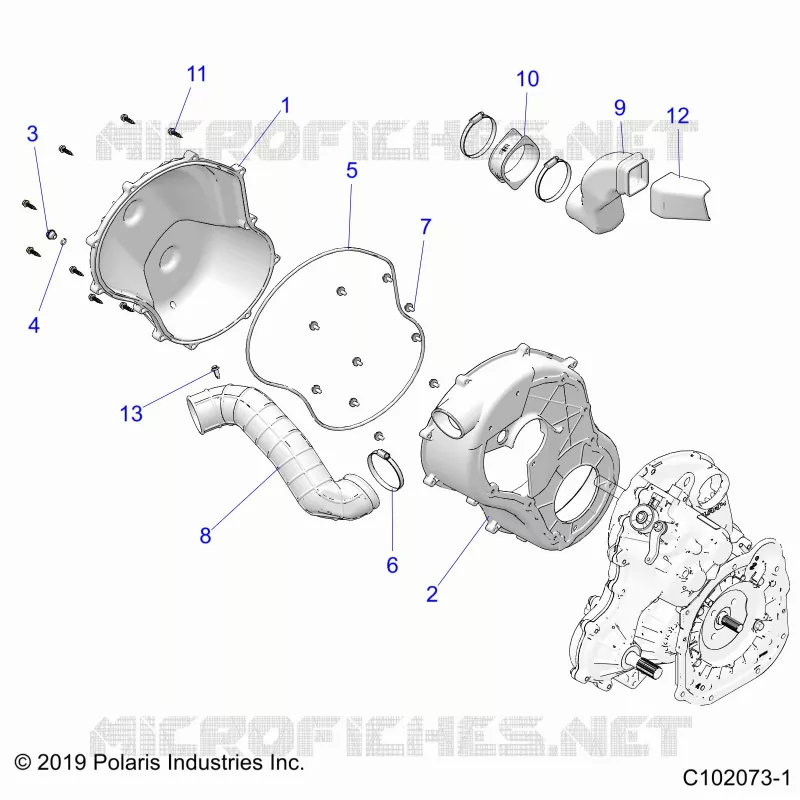

Parts Diagram
Parts Catalog
by
DECALSS
BODY, CLUTCH COVER
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Asm. Cover Clutch Outer [INCL. OUTER COVER 3 4]
2633919
$278,24 Unit Price incl. VAT
2
COVER CLUTCH INNER
5438127
$330,74 Unit Price incl. VAT
3
PLUG-DRAIN CLUTCH COVER
5434264
$10,49 Unit Price incl. VAT
4
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
5
SEAL COVER CLUTCH
5526454
$68,24 Unit Price incl. VAT
6
CLAMP-BAND NARROW 70-90MM
7081279
$5,76 Unit Price incl. VAT
7
SCR-M6X1.0X14 PN/TX
7520472
$6,29 Unit Price incl. VAT
8
DUCT-OUTLET CLUTCH
5416407
$136,49 Unit Price incl. VAT
9
DUCT AIR INLET CLUTCH ETC
5452432
$115,49 Unit Price incl. VAT
10
Boot Clutch Inlet
5413177
$73,49 Unit Price incl. VAT
11
SCR-#14X1-1/4 HI/LO/TAPER-Y
7519849
$6,29 Unit Price incl. VAT
12
BOOT INLET DUCT
5413516
$18,89 Unit Price incl. VAT
13
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
