Engine displacement
500
2
Year
2003
3
Trim
sportsman-500-ho-a03ch50aaabacadaeahaj
4
Parts Catalog

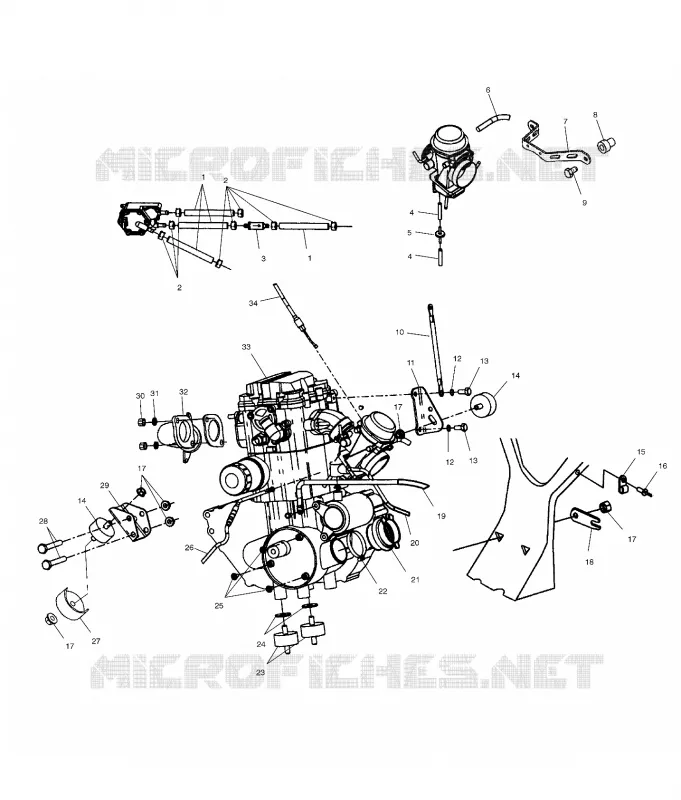

ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
FUEL TANK
by
AIR BOX
ENGINE MOUNTING
1
1
2
2
3
4
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
2
3
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
1
1
1
1
1
2
3
4
5
5
6
7
8
9
10
11
12
12
13
13
13
13
14
15
15
16
17
18
1
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
2
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
3
FILTER
2530009
$12,59 Unit Price incl. VAT
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
VENT CHECKVALVE
7051011
Not Available
6
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
7
Strap Carburetor Mount
5246551
Not Available
8
NUT WELL
7541923
$10,49 Unit Price incl. VAT
9
BOLT(10)
7512247
Not Available
10
CABLE GND-ENGINE
4010132
Not Available
11
Mount Engine Top
5241453
Not Available
12
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
13
Bolt
7512315
$9,44 Unit Price incl. VAT
14
Mount Rubber
3110044
3024012
$83,99 Unit Price incl. VAT
15
CLAMP-NYLON CABLE 1/4#
7080539
$9,44 Unit Price incl. VAT
16
RIVET-POP3/16(.251-.375)AL-B
7621462
$2,09 Unit Price incl. VAT
17
NUT FLANGE LOCK
7547108
$9,44 Unit Price incl. VAT
18
STRAP FRAME SUPPORT BLK
5224658067
Not Available
19
Cable Battery/Engine
4010095
Not Available
20
CABLE-21# SOL/START RED
4010093
$89,24 Unit Price incl. VAT
21
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
22
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
23
Mount Rubber
3110046
Not Available
24
WASHER FLAT
7555815
$7,34 Unit Price incl. VAT
25
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
26
Cable Choke
7081008
$152,24 Unit Price incl. VAT
27
Bracket Torque Stop
5245043
$31,49 Unit Price incl. VAT
28
SCR-3/8-24X2 3/4HX HD CP GR5-Y
7515417
$9,44 Unit Price incl. VAT
29
Mount Engine Front
5241150
Not Available
30
NUT(10)
3080285
Not Available
31
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
32
Manifold
1261043029
$293,99 Unit Price incl. VAT
33
ENG.EH50PLE-04 (See Footnote)
3085822
Not Available
34
Cable Throttle
7080967
$104,99 Unit Price incl. VAT
