1
Engine displacement
800
2
Year
2014
3
Trim
RANGER 800 CREW - R14WH76AA
4
Parts Catalog

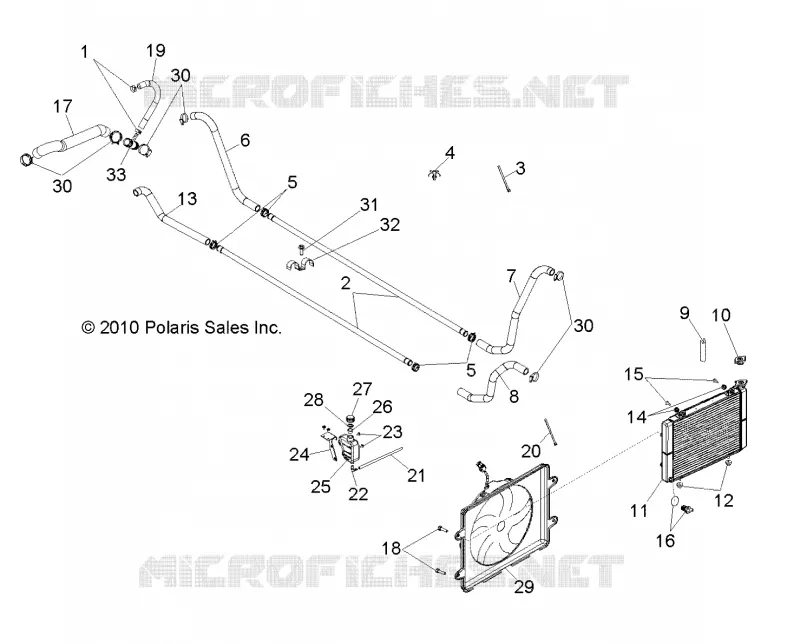

COOLING SYSTEM
5
Parts Diagram
Parts Catalog
IGNITION SYSTEM
by
CRANKCASE
COOLING SYSTEM
26
27
28
29
30
30
30
15
32
33
1
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
2
Tube Coolant
5335940
$83,99 Unit Price incl. VAT
3
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
4
MOUNT CABLE TIE
7080965
$13,64 Unit Price incl. VAT
5
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
6
Hose Engine Outlet Rear
5413954
$89,24 Unit Price incl. VAT
7
Hose Radiator Lower
5413853
$68,24 Unit Price incl. VAT
8
Hose Radiator Upper
5413745
$83,99 Unit Price incl. VAT
9
EDGE TRIM-BLACK 10 CM
836001210
$83,99 Unit Price incl. VAT
10
CAP PRESSURE
1240300
$73,49 Unit Price incl. VAT
11
ASM. RADIATOR
1240721
$913,49 Unit Price incl. VAT
11
RADIATOR FLAT
1240720
1240721
$913,49 Unit Price incl. VAT
12
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
13
HOSE ENGINE OUTLET REAR
5414509
Not Available
14
ASM. GROMMET AND INSERT
5413155
$7,34 Unit Price incl. VAT
15
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
16
Valve Plastic Radiator/Cooler Drain
7052410
$52,49 Unit Price incl. VAT
17
Hose Bypass Formed
5413949
Not Available
18
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
19
Hose Bypass Formed
5414207
$68,24 Unit Price incl. VAT
19
CONDUIT FLEX
552128718
$9,23 Unit Price incl. VAT
20
CABLE-TIE 10-102MM WEATH.-RES.
7080761
$5,24 Unit Price incl. VAT
21
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
22
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
23
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
24
BRACKET SURGE TANK BLACK
5252305329
$52,49 Unit Price incl. VAT
25
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
26
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
27
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
28
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
29
ASM. FAN
2411732
$593,24 Unit Price incl. VAT
30
CLAMP-HOSE 13/16#-1 1/2#
7081174
$13,64 Unit Price incl. VAT
31
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
32
CLIP ROUTING
5438331
$10,49 Unit Price incl. VAT
33
T-FITTING
7052494
$17,84 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
