1
Engine displacement
800
2
Year
2014
3
Trim
RANGER 800 CREW - R14WH76AA
4
Parts Catalog

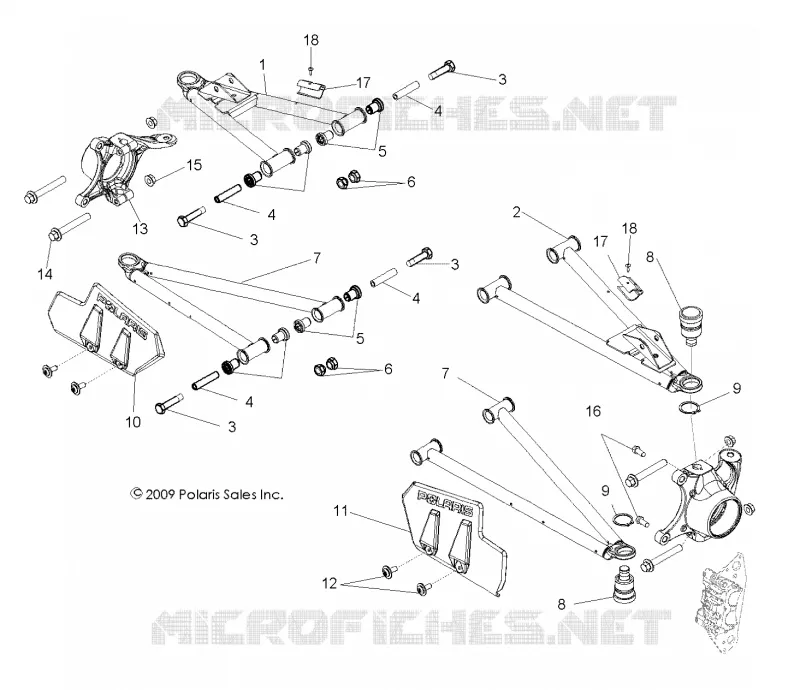

FRONT SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
THROTTLE PEDAL
by
FRONT SUSPENSION SHOCK
FRONT SUSPENSION CONTROL ARMS
1
2
3
4
5
1
2
3
3
3
3
4
4
4
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
13
14
15
16
17
17
18
18
1
ARM CONTROL UPPER FRONT MATTE BLACK RH
1018198458
$230,99 Unit Price incl. VAT
2
ARM CONTROL UPPER FRONT MATTE BLACK LH
1018197458
$230,99 Unit Price incl. VAT
3
SCR-HXFL-M10X1.25X95 10.9 ZOD
7519043
$17,84 Unit Price incl. VAT
4
SHAFT PIVOT 73.96MM
5137591
$10,49 Unit Price incl. VAT
5
BUSHING A-ARM. SHORT BLACK
5439270
$4,19 Unit Price incl. VAT
6
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
7
ARM CONTROL LOWER FRONT MATTE BLACK
1018186458
$272,99 Unit Price incl. VAT
8
JOINT BALL [BUILT 3/07/13 AND AFTER]
7061187
7061220
$141,74 Unit Price incl. VAT
9
RING-RETAINER EXTERNAL 1.188
7710533
$4,19 Unit Price incl. VAT
10
SHIELD-CV FRONT RH BLK
5437545070
$47,24 Unit Price incl. VAT
11
SHIELD-CV FRONT LH BLK
5437544070
$47,24 Unit Price incl. VAT
12
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
13
CARRIER WHEEL BEARING RH
5136949
$367,49 Unit Price incl. VAT
13
CARRIER WHEEL BEARING LH
5136948
$262,49 Unit Price incl. VAT
14
SCR-M8X1.25X60-HX/FL-Y
7516733
$11,54 Unit Price incl. VAT
15
NUT-M8X1.25C10 HX NYL DIN982 Z
7547405
$2,09 Unit Price incl. VAT
16
SCR-HXFL-M10X1.25X25 8.8 Z NY
7518760
$17,84 Unit Price incl. VAT
17
RETAINER BRAKE LINE 1#
5439192
$3,14 Unit Price incl. VAT
18
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
