1
Engine displacement
900
2
Year
2014
3
Trim
RANGER 900 DIESEL - R14TH90DG
4
Parts Catalog
ENGINE, ALTERNATOR
5
Parts Diagram
Parts Catalog
ELECTRICAL, INSTRUMENTS CONTROLS
by
ENGINE, CAMSHAFT AND DRIVING GEAR

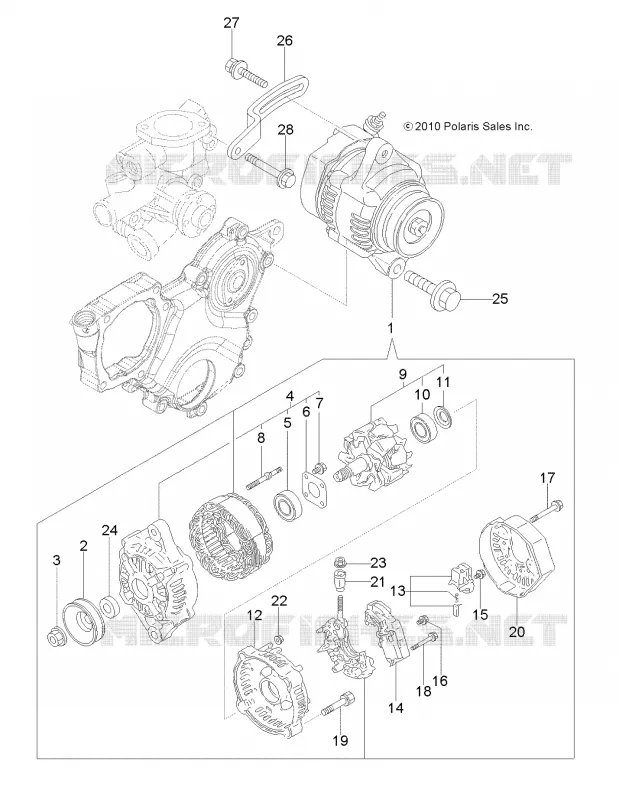

ENGINE, ALTERNATOR
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
Asm. Alternator [Incl. 2-24]
3070341
$1 711,49 Unit Price incl. VAT
2
Pulley
3070342
Not Available
3
Nut
3070343
Not Available
4
Asm. Frame [Incl. 5-8]
3070344
$656,24 Unit Price incl. VAT
5
Bearing Ball
3070345
Not Available
6
Plate Retainer
3070346
Not Available
7
Screw
3070347
Not Available
8
Stud Feed Pump
3070348
Not Available
9
Asm. Rotor [Incl. 10 11]
3070349
$461,99 Unit Price incl. VAT
10
Bearing Ball
3070350
Not Available
11
Cover Bearing
3070351
Not Available
12
Frame Rear End
3070352
Not Available
13
Holder Brush
3070353
$48,92 Unit Price incl. VAT
14
Asm. Regulator
3070354
$480,89 Unit Price incl. VAT
15
Screw
3070355
Not Available
16
Screw
3070356
Not Available
17
Bolt
3070357
Not Available
18
Screw
3070358
Not Available
19
Bolt
3070359
Not Available
20
Cover Rear End
3070360
Not Available
21
Bush Insulation
3070361
Not Available
22
Nut
3070362
Not Available
23
Nut
3070363
Not Available
24
Collar
3070364
$57,74 Unit Price incl. VAT
25
Bolt Plated
3070340
$12,59 Unit Price incl. VAT
26
Adjuster Belt
3070311
$175,34 Unit Price incl. VAT
27
Bolt
3070312
Not Available
28
Bolt Plated
3070313
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
