1
Engine displacement
500
2
Year
2001
3
Trim
MAGNUM 500 - A01CD50AA
4
Parts Catalog
PROP SHAFT
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM
by

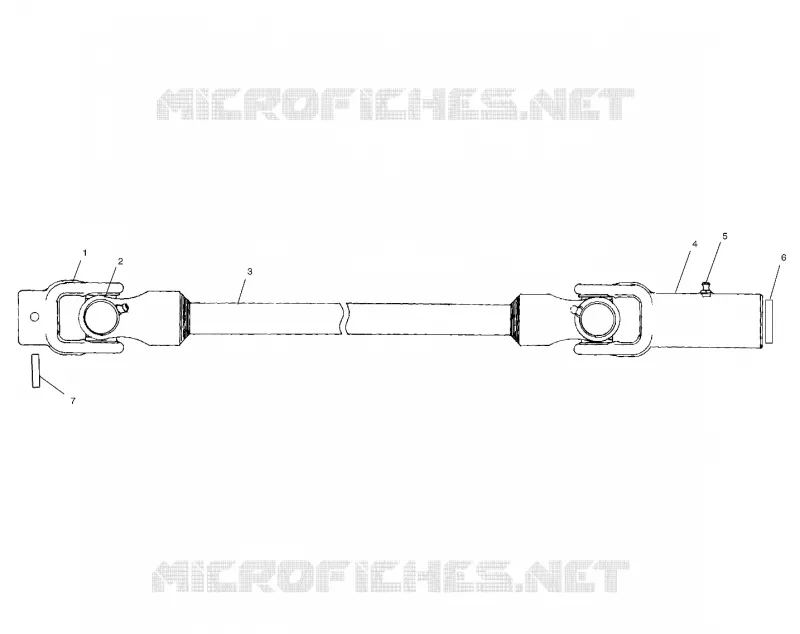

FRONT PROP SHAFT
PROP SHAFT
-
PROPSHAFT ASM FRONT (Incl. 1-4)
1380138
Not Available
1
Yoke Gear Case Front
3260133
$209,99 Unit Price incl. VAT
2
KIT CROSS&BEARING
3260104
$83,99 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
YOKE PROP SHAFT TRANSMISSION
3260131
$241,49 Unit Price incl. VAT
5
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
6
O-RING-.859X1.137X.139
5411092
$3,14 Unit Price incl. VAT
7
PIN-SPRING 5/16 X 1 5/8-Y
7661913
$7,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
