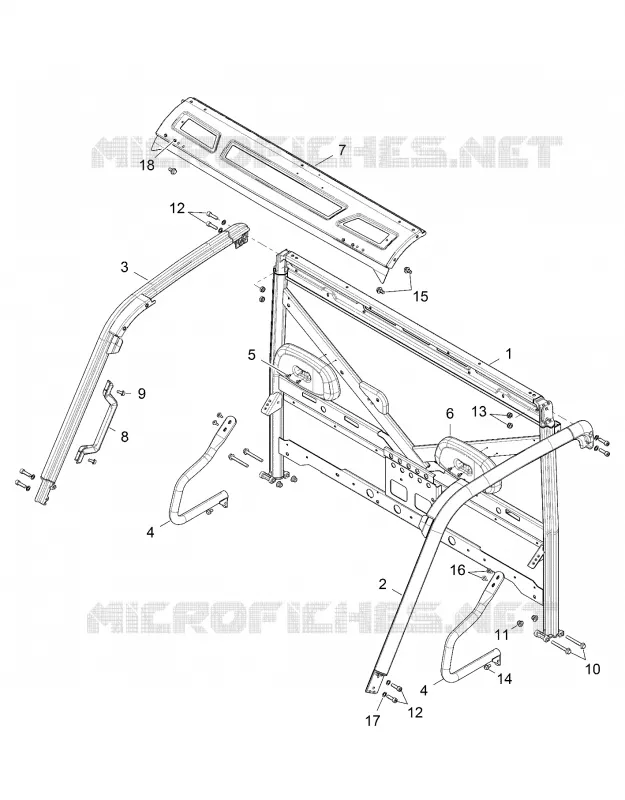

CHASSIS, CAB FRAME FOR D16B3PD1AJ/B4 BRUTUS HD HDPTO (R02) - D16B4PD1AJ/B4 FROM 2016

CHASSIS, CAB FRAME

1

FRAME CAB REAR MATTE BLACK

1022046458

$992,24 Unit Price incl. VAT

2

FRAME CAB FRONT LH MATTE BLACK

1018082458

$645,74 Unit Price incl. VAT

3

FRAME CAB FRONT RH MATTE BLACK

1018083458

$645,74 Unit Price incl. VAT

4

HIP BOLSTER MATTE BLACK

1019524458

$194,24 Unit Price incl. VAT

4

HIP BOLSTER MATTE BLACK {NOT USED WITH [M87AL/BL][U87A9/B9]}

5338917458

$120,74 Unit Price incl. VAT

5

RIVET-POP 3/16 (.376-.500) AL-LFB

7621460

$2,09 Unit Price incl. VAT

6

Headrest Black

5438563070

$115,49 Unit Price incl. VAT

7

PLATE WINDSHIELD MOUNT UPPER MATTE BLACK

5255166458

$404,24 Unit Price incl. VAT

8

HANDLE-GRAB ROPS BLK

5450844070

$62,99 Unit Price incl. VAT

9

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

$4,19 Unit Price incl. VAT

10

SCR-HXFL-M10X1.25X80 8.8 ZOD

7519363

$4,19 Unit Price incl. VAT

11

NUT-M10X1.25 FLG NYLOC-OLIVE D

7547333

$3,14 Unit Price incl. VAT

12

SCR-SH-M10X1.5X35 8.8 ZPB

7519959

$3,14 Unit Price incl. VAT

13

NUT-NYLOCK M10X1.5 REF 0600110

7547268

$2,09 Unit Price incl. VAT

14

SCR-HXFL-M8X1.25X16 8.8 ZPB D5

7517956

$14,69 Unit Price incl. VAT

14

SCREW-HXFL-M8X1.25X20 8.8 ZOD P3

7519133

$3,14 Unit Price incl. VAT

15

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$3,14 Unit Price incl. VAT

16

SCR-TXTH-M6X1.0X25 ZFB

7519650

$7,34 Unit Price incl. VAT

17

WASHER

7555923

$4,19 Unit Price incl. VAT

18

PLUG FENDER REAR

7671178

$3,66 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
