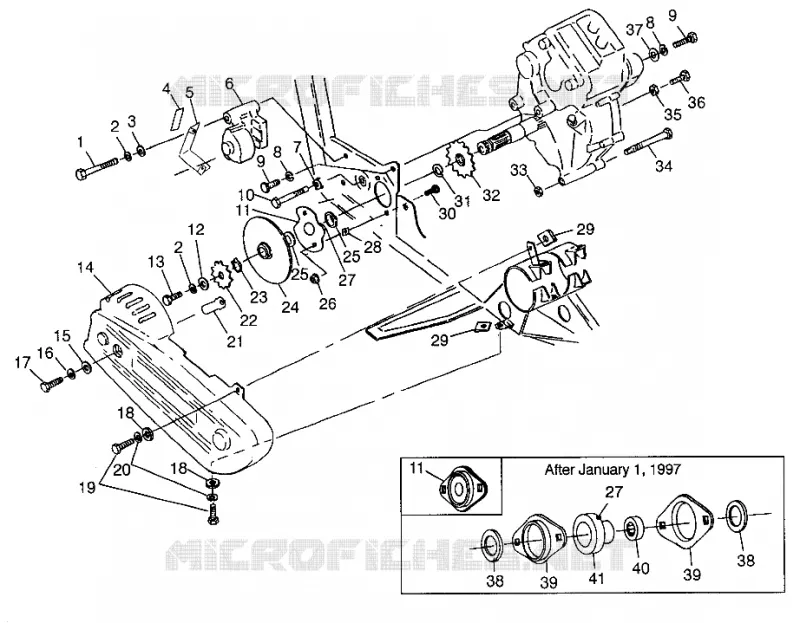

GEARCASE/BRAKE AND CHAIN COVER MOUNTING MAGNUM 4X4 W97AC42A, SWEDISH MAGNUM (4940834083C004)
5
Parts Diagram
Parts Catalog
CENTER TIGHTENER MAGNUM 4X4 W97AC42A, SWEDISH MAGNUM 4X4 S97AC42E AND NORWE (4940834083B014)
by
REAR BRAKE MAGNUM 4X4 W97AC42A, SWEDISH MAGNUM 4X4 S97AC42E AND NORWEGIAN M (4940834083C005)
GEARCASE/BRAKE AND CHAIN COVER MOUNTING MAGNUM 4X4 W97AC42A, SWEDISH MAGNUM (4940834083C004)
1
BOLT(10)
7515345
$10,49 Unit Price incl. VAT
2
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
3
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
4
DECAL BRAKE SHIELD
7075339
Not Available
5
SHIELD R.CALIPER BLK.
5241018067
Not Available
6
CALIPER ASM R.BRAKE (Incl. 3-22)
1910224
Not Available
6
CALIPER ASM R.(SCAND)
1910130
Not Available
8
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
9
BOLT(10)
7515522
$7,34 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
BRG.ASM O/P SHAFT
1590237
$114,44 Unit Price incl. VAT
11
SHAFT ASM O/P NDL BRG. Substituted by 2201115 (After Jan. 1 1997)
1590265
Not Available
12
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
13
BOLT(10)
7515321
Not Available
14
GUARD CHAIN CTR.
5431717
Not Available
14
GUARD CTR.CHAIN NOR.
5432254
Not Available
15
WASHER(10) Substituted by 7558402
7555770
7558402
$1,56 Unit Price incl. VAT
16
WASHER(10)
7552606
$9,44 Unit Price incl. VAT
17
BOLT(10)
7515384
Not Available
18
WASHER [INTL]
7555843
7558302
$3,14 Unit Price incl. VAT
19
BOLT(10)
7512269
Not Available
20
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
21
SPACER CHAIN GUARD
5333254
Not Available
22
SPKT 11T
3221058
$115,49 Unit Price incl. VAT
22
SPKT 10T
3221046
Not Available
23
RING RETAINING(10)
7710433
$9,44 Unit Price incl. VAT
24
DISC ASM BRAKE
1910177
Not Available
25
SEAL BRAKE
3610026
Not Available
26
NUT
7542449
$7,34 Unit Price incl. VAT
27
FITTING LUBE 45 DEG.(10)
7080586
Not Available
27
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
28
Shim [.030 Inch]
5211517
$52,49 Unit Price incl. VAT
28
SHIM CHAINCASE .010
5211065
$52,49 Unit Price incl. VAT
28
SHIM CHAINCASE .020
5210764
$15,74 Unit Price incl. VAT
29
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
30
BOLT CARRIAGE(10)
7515484
Not Available
31
RING RETAINING BASIC EXTERNAL
7710434
$7,34 Unit Price incl. VAT
32
SPROCKET 10T
3221047
$179,54 Unit Price incl. VAT
32
Sprocket 13T
3221041
$83,99 Unit Price incl. VAT
33
Nut
7542403
Not Available
34
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
$4,19 Unit Price incl. VAT
35
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
36
BOLT(10)
7515485
$5,24 Unit Price incl. VAT
37
WASHER Substituted by 7555720
7555784
$1,56 Unit Price incl. VAT
38
SEAL BRAKE
3610062
$17,84 Unit Price incl. VAT
39
FLANGETTE O/P SHAFT BRNG.
5242072
Not Available
40
BEARING NEEDLE
3554202
Not Available
41
HSG BRNG O/P SHAFT
5131643
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
