1
Engine displacement
300
2
Year
1994
3
Trim
300 2X4 - W947530
4
Parts Catalog
DRIVEN CLUTCH ASSEMBLY 2X4 300 W947530 (4926742674B011)
5
Parts Diagram
Parts Catalog
FRONT WISHBONES STEERING TIE RODS 2X4 300 W947530 (4926742674B006)
by
CLUTCH COVER ASSEMBLY 2X4 300 W947530 (4926742674B012)

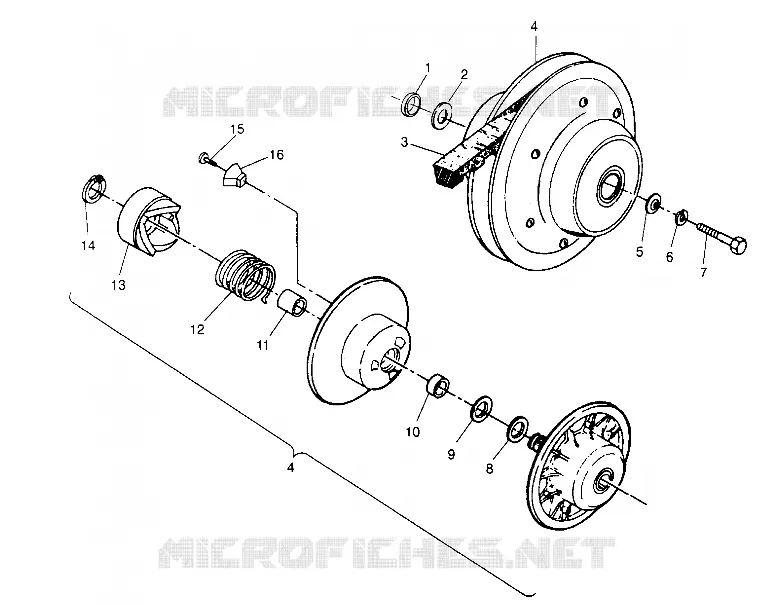

DRIVEN CLUTCH ASSEMBLY 2X4 300 W947530 (4926742674B011)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
1
BUSHING(10)
7556406
Not Available
2
Bushing
7556401
Not Available
3
BELT-DRIVE(5) Substituted by 3211077
3211048
3211077
$107,93 Unit Price incl. VAT
4
CLUTCH DRIVEN 3 ANGLE Substituted by 1322182
1322163
1322182
$923,99 Unit Price incl. VAT
5
WASHER DOMED
5220646
$4,19 Unit Price incl. VAT
6
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
7
SCR-HH-5/16-18X3.75 GR5 ZY3
7515382
$4,19 Unit Price incl. VAT
8
Washer .020
7555898
$2,09 Unit Price incl. VAT
9
Washer .030
7556804
$1,56 Unit Price incl. VAT
10
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
11
Bearing Moveable 1 Inch
3576511
$52,49 Unit Price incl. VAT
12
SPRING CLUTCH (RED)
7041198
$104,99 Unit Price incl. VAT
13
RAMP STATIONARY Substituted by 5131447
5630321
$146,99 Unit Price incl. VAT
14
RETAINING RING(10)
7714401
$4,71 Unit Price incl. VAT
15
BOLT(10)
7511854
$2,09 Unit Price incl. VAT
16
BUTTON RAMP
5430766
5450873
$11,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
