1
Engine displacement
1000
2
Year
2016
3
Trim
RANGER 1000 DIESEL EU
4
Parts Catalog
ENGINE, MOUNTING
5

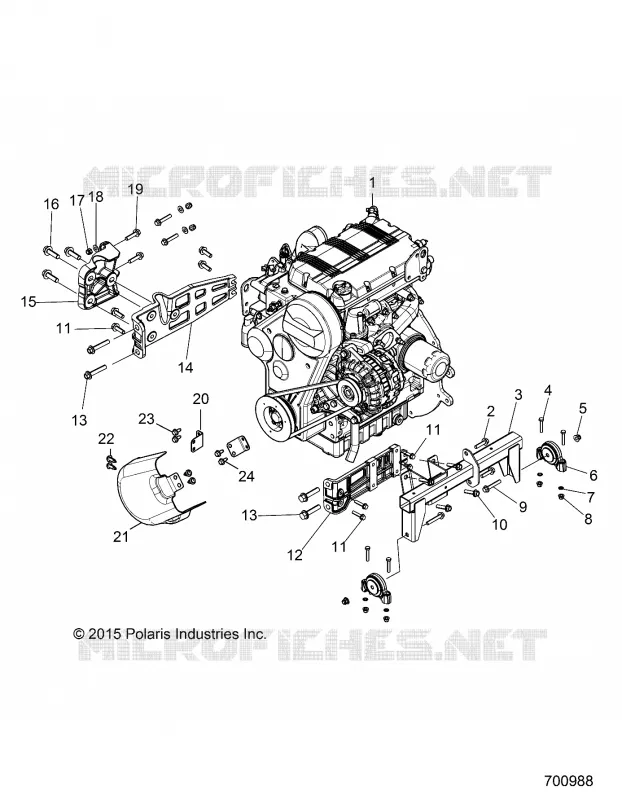

Parts Diagram
Parts Catalog
ENGINE, CYLINDER HEAD AND PRECOMBUSTION CHAMBER
by
ENGINE, OIL COOLING SYSTEM
ENGINE, MOUNTING
1
10
3
4
5
6
7
8
9
10
11
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
1
ASM-ENG KDW1003
1205628
Not Available
2
SCR-M10X1.5X25 8.8 HXFL ZOD
7519071
$9,44 Unit Price incl. VAT
3
MOUNT ENGINE
1020409329
$225,74 Unit Price incl. VAT
4
SCREW-HH M8X1.25X45 8.8 ZOD
7519097
$3,14 Unit Price incl. VAT
5
NUT-M10X1.25 FLG NYLOC-OLIVE D
7547333
$3,14 Unit Price incl. VAT
6
MOUNT-ISOLATOR DRIVELINE
1332955
$136,49 Unit Price incl. VAT
7
NUT-5/16-PAL-Y
7547030
$9,44 Unit Price incl. VAT
8
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
9
SCR-HXFL-M10X1.25X60 8.8 ZOD
7518563
$5,76 Unit Price incl. VAT
10
SCR-M10X1.5X25 8.8 HXFL ZOD
7519071
$9,44 Unit Price incl. VAT
11
BOLT-M8X1.25X25 HXFLG-OLIVE D
7518514
$3,14 Unit Price incl. VAT
12
COUPLER L ENGINE FRONT
5633200
$204,74 Unit Price incl. VAT
13
SCR-HXFL-M12X1.75X30 ZOD
7520054
$14,69 Unit Price incl. VAT
14
COUPLER ENGINE GEARCASE
5633498
$309,74 Unit Price incl. VAT
15
COUPLER L ENGINE GEARCASE
5633151
$141,74 Unit Price incl. VAT
16
SCR-HXFL-M10X1.5X35 10.9 ZOD D
7519782
$7,34 Unit Price incl. VAT
17
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
18
WASHER
7556153
$3,66 Unit Price incl. VAT
19
SCR-HXFL-M10X1.5X50 10.9 ZOD
7519783
$41,99 Unit Price incl. VAT
20
BRKT BELT GUARD MOUNT BLK
5260915458
$31,49 Unit Price incl. VAT
21
COVER DEBRIS
5452667
$73,49 Unit Price incl. VAT
22
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
23
SCREW-HXFL-M6X1.0X12 8.8 ZPB
7517704
$13,64 Unit Price incl. VAT
24
SCR-TFHFL M6X1.0X15 CHS ZOD
7518513
$9,44 Unit Price incl. VAT
