1
Engine displacement
0
2
Year
2016
3
Trim
L16U2NAGFA/MA M1400 GAS [L16U2NAGFA/MA] - R07
4
Parts Catalog
COOLING SYSTEM
5

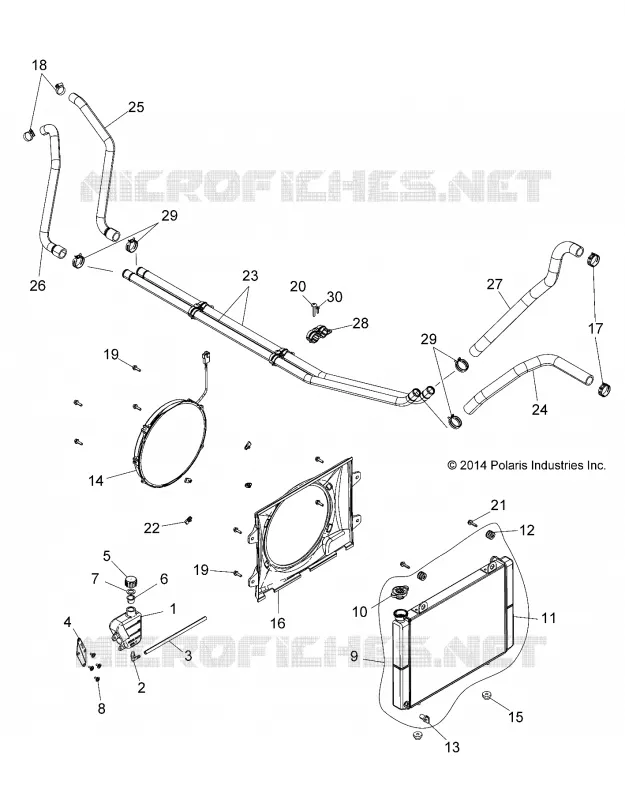

Parts Diagram
Parts Catalog
ENGINE, CAMS AND BEARING HOUSING
by
CRANKCASE AND OIL SUMP
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
17
17
30
1
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
2
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
3
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
4
BRACKET SURGE TANK
5254763
$10,49 Unit Price incl. VAT
5
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
6
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
7
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
8
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
9
ASM. RADIATOR
1240721
$913,49 Unit Price incl. VAT
10
CAP PRESSURE
1240300
$73,49 Unit Price incl. VAT
11
RADIATOR FLAT
1240720
1240721
$913,49 Unit Price incl. VAT
12
ASM. GROMMET AND INSERT
5413155
$7,34 Unit Price incl. VAT
13
Valve Plastic Radiator/Cooler Drain
7052410
$52,49 Unit Price incl. VAT
14
ASM. FAN
2410865
$289,79 Unit Price incl. VAT
15
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
16
SHROUD FAN
5436852
$83,99 Unit Price incl. VAT
17
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
18
CLAMP-CONSTANT TENSION 16-27
7081415
$13,64 Unit Price incl. VAT
19
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
20
SCR-TXTH-M6X1.0X50 8.8 ZPB
7519001
$7,34 Unit Price incl. VAT
21
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
22
CLIP-#U# M6.0X1.0
7547366
$9,44 Unit Price incl. VAT
23
TUBE COOLANT
5139592
$350,58 Unit Price incl. VAT
24
HOSE LOWER RADIATOR
5414977
$89,24 Unit Price incl. VAT
25
HOSE ENGINE OUTLET REAR
5415051
$83,99 Unit Price incl. VAT
26
HOSE LOWER ENGINE SHORT
5415052
$73,49 Unit Price incl. VAT
27
HOSE UPPER RADIATOR
5415269
$99,74 Unit Price incl. VAT
28
BRACKET-COOLANT TUBE
5451221
$16,79 Unit Price incl. VAT
29
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
30
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
