1
Engine displacement
0
2
Year
2016
3
Trim
L16U2NAGFA/MA M1400 GAS [L16U2NAGFA/MA] - R07
4
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
5

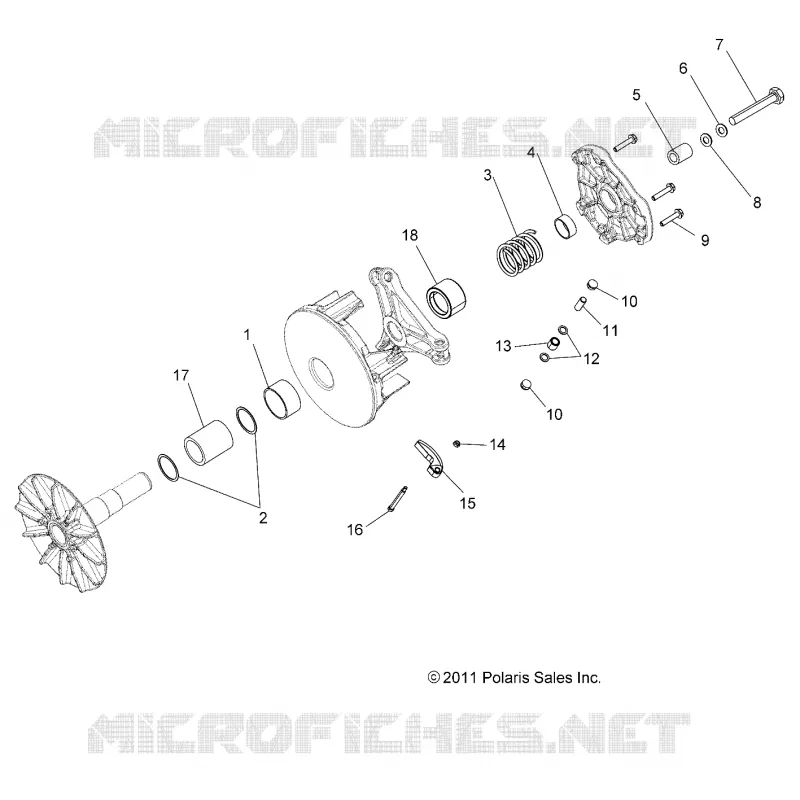

Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
by
DRIVE TRAIN, REAR DRIVE SHAFT
DRIVE TRAIN, PRIMARY CLUTCH
-
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
-
ASM. CLUTCH DRIVE BASIC BEARING [INCL. 1 2 4 9-14 16 17 19]
1323256
$771,74 Unit Price incl. VAT
1
BEARING-DU 1.75ID
3514492
$54,59 Unit Price incl. VAT
2
WASHER-CLUTCH VESPEL
7556335
$11,54 Unit Price incl. VAT
3
SPRING CLUTCH 27-225 RED/ORANGE
7044321
$115,49 Unit Price incl. VAT
4
BEARING COVER .75IN
3514684
$27,29 Unit Price incl. VAT
5
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
6
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
7
SCREW-HXHD 7/16x8
7519287
$52,49 Unit Price incl. VAT
8
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
9
SCR-1/4-20X1.25 HX/FL GR5
7518062
$9,44 Unit Price incl. VAT
10
BUTTON CLUTCH RUBBER BACKED
5439254
$14,69 Unit Price incl. VAT
11
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
12
WASHER-CLUTCH SPIDER ROLLER
5438247
$3,14 Unit Price incl. VAT
13
ASM. ROLLER AND BUSHING
1321622
$62,99 Unit Price incl. VAT
14
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
15
WEIGHT SHIFT 10RHF
5632282
$52,49 Unit Price incl. VAT
16
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
17
BEARING-NEEDLE
3514609
$60,89 Unit Price incl. VAT
18
SPACER-CLUTCH
5633000
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
