1
Engine displacement
800
2
Year
2008
3
Trim
SPORTSMAN 800 EFI SCANDINAVIAN - A08MH76SS/SF
4
Parts Catalog

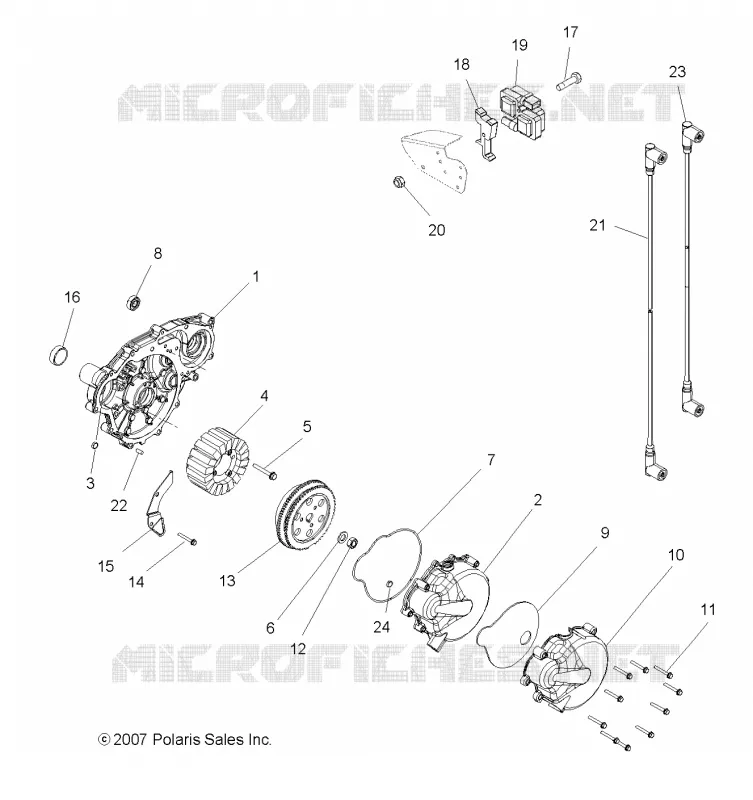

IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
HEADLIGHTS
by
SWITCHES AND SENSORS AND ECM
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
11
15
16
17
18
19
20
21
22
23
24
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
1
Asm. Engine Cover Magneto
1203626
$404,24 Unit Price incl. VAT
2
Asm. Cover Stator
1203334
Not Available
3
Bushing
3514378
$19,83 Unit Price incl. VAT
4
Stator
4011982
2208144
$1 889,99 Unit Price incl. VAT
5
SCR-M6X1.0X35 SOC/CP-Y/D
7517848
$10,49 Unit Price incl. VAT
6
WASHER
7555907
$10,49 Unit Price incl. VAT
7
O-Ring
5412458
Not Available
8
SEAL OIL
5412455
$41,99 Unit Price incl. VAT
9
Cover Sound Dampening
5813050
$62,99 Unit Price incl. VAT
10
Cover Stator Outer
5436652
Not Available
11
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
12
NUT
7547213
$9,44 Unit Price incl. VAT
13
Flywheel
4011981
2208144
$1 889,99 Unit Price incl. VAT
14
SCR-M6X1.0X45 HX-FL-Y/D
7517950
$10,49 Unit Price incl. VAT
15
Bracket Wire Holddown
5245364
$73,49 Unit Price incl. VAT
16
SEAL FLANGED
5412881
$57,74 Unit Price incl. VAT
17
SCREW(10)
7515156
$7,34 Unit Price incl. VAT
18
SPACER-COIL MOUNT
5436577
$7,34 Unit Price incl. VAT
19
Kit Ignition Coil (Incl. 24 26 28)
2876049
$451,49 Unit Price incl. VAT
20
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
21
Wire Spark Plug 59.3cm
4011365
$89,24 Unit Price incl. VAT
22
PIN-DOWEL M4X10-SS
7663002
$9,44 Unit Price incl. VAT
23
Wire Spark Plug 49.5cm
4011364
$115,49 Unit Price incl. VAT
24
BUSHING
3514553
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
