1
Engine displacement
0
2
Year
1996
3
Trim
STORM RMK - 0965982
4
Parts Catalog

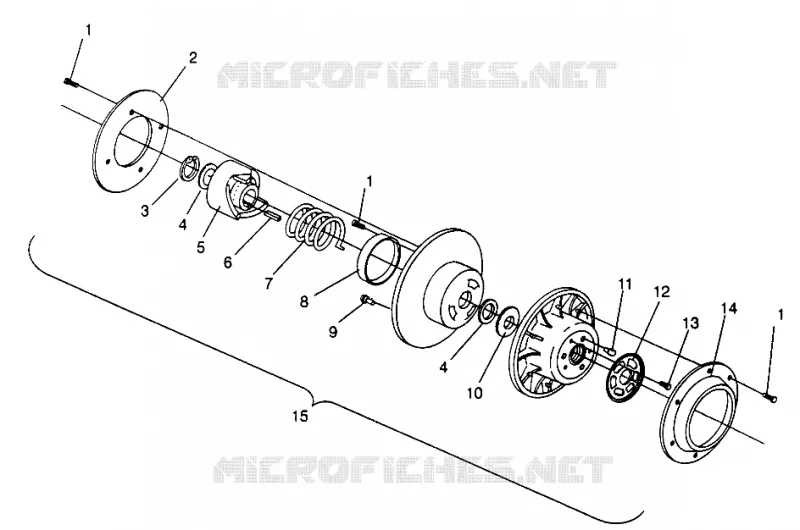

DRIVEN CLUTCH ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E96578 (4931593159C009)
5
Parts Diagram
Parts Catalog
DRIVE CLUTCH ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E965782 (4931593159C008)
by
DRIVE TRAIN ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E965782, (4931593159C010)
DRIVEN CLUTCH ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E96578 (4931593159C009)
1
SCREW(10)
7512048
Not Available
2
PLATE (600 600 SE)
5210749
$39,78 Unit Price incl. VAT
3
RING RETAINING(10)
7714804
$17,84 Unit Price incl. VAT
4
Washer .030
7556804
$1,56 Unit Price incl. VAT
5
RAMP DRIVEN R3 MACH Substituted by 2900037
5131289
Not Available
6
KEY SQUARE(10)
7721103
$12,59 Unit Price incl. VAT
7
SPRING BLUE DRIVEN CLUTCH (Blue)
7041296
Not Available
8
BUSHING D.U.
3569803
Not Available
9
BUTTON-RAMP (10)
5430466
$12,59 Unit Price incl. VAT
10
WASHER DRIVE CLUTCH(10)
7555865
$11,54 Unit Price incl. VAT
11
PIN CLUTCH
5020653
$52,49 Unit Price incl. VAT
12
CAM DRIVEN ADJUSTABLE
5222878
Not Available
13
SCR-HXFL-1/4-20X0.5 GR5.1 ZY3
7515133
$7,34 Unit Price incl. VAT
14
CAP DRIVEN (600 600 SE)
5230101
Not Available
15
CLUTCH DRIVEN R3 W/ COVER (Incl. 1-14)
1322174
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
