Parts Diagram

SUSPENSION ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805B009)

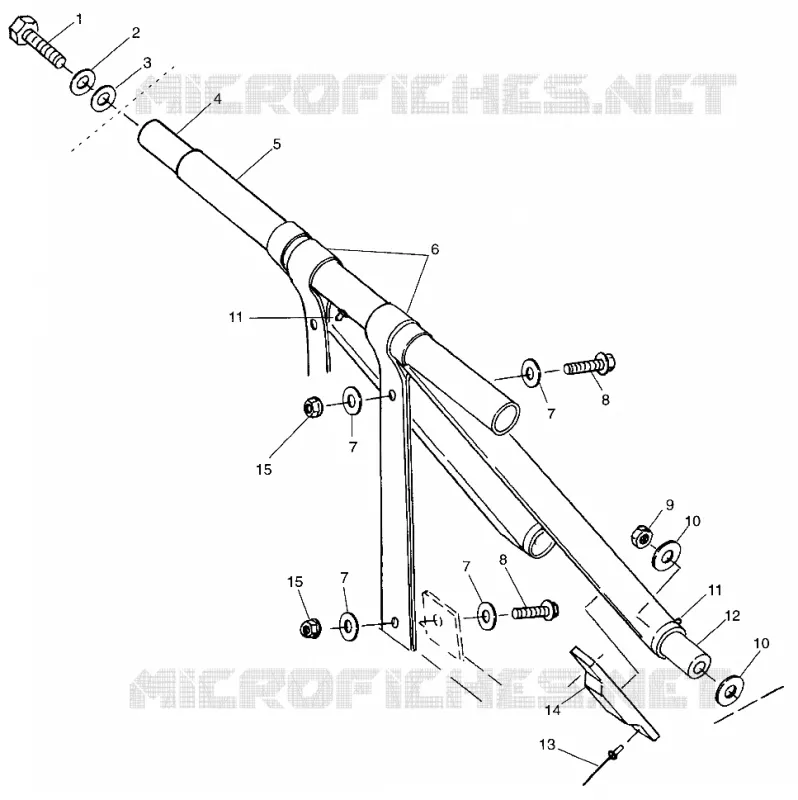

FRONT TORQUE ARM ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805B010) FOR ULTRA - 0976778 FROM 1997

REAR TORQUE ARM ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805B011)

BOLT(10)

7512589

$3,14 Unit Price incl. VAT

WASHER LOCK

7552614

$3,14 Unit Price incl. VAT

WASHER FLAT

7555984

$4,19 Unit Price incl. VAT

SHAFT

5020812

Not Available

ARM F.TORQUE

1540969067

Not Available

STRAP LIMITER

5410938

Not Available

WASHER-.328X1.25X16GA FL-Y

7555716

$3,14 Unit Price incl. VAT

SCR-5/16-18X1-HX/FLG-GR5-Y

7515307

$7,34 Unit Price incl. VAT

Nut

7542403

Not Available

WASHER(10)

7555743

Not Available

FITTING LUBRICATION

7080433

$2,09 Unit Price incl. VAT

SHAFT

5020813

Not Available

POP RIVET(50)

7621418

$2,09 Unit Price incl. VAT

BUMPER

5432166

$9,44 Unit Price incl. VAT

NUT FLANGE

7542321

$2,09 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
