Parts Diagram

OIL PUMP ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805C013)

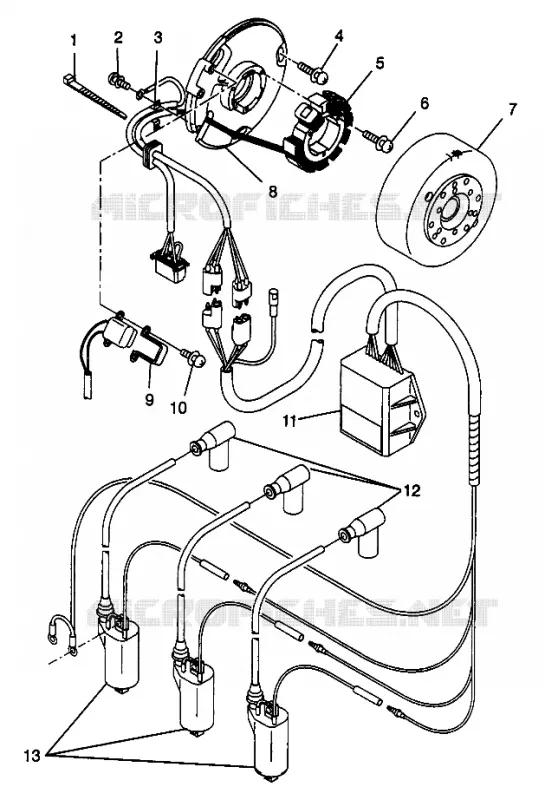

MAGNETO ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805C014) FOR ULTRA - 0976778 FROM 1997

RECOIL STARTER ULTRA 0976778 AND EUROPEAN ULTRA E976778 (4938053805D001)

BAND

3084097

Not Available

SCREW&WASHER (10)

3081260

Not Available

CLAMP Substituted by 3085334

3085163

Not Available

BOLT&WASHER ASM.

3083866

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

PLATE ASM. (Incl. 1-3 5 6 8-10)

3085289

Not Available

SCREW&WASHER ASM.

3085164

Not Available

FLYWHEEL ASM.

3085291

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

BAND

3084099

Not Available

STAY (WIRE) (Wire)

3084067

Not Available

CDI SYSTEM

3085292

Not Available

CAP SPARK PLUG (10)

4020129

4083595

$52,49 Unit Price incl. VAT

COIL IGNITION

3085293

Not Available
