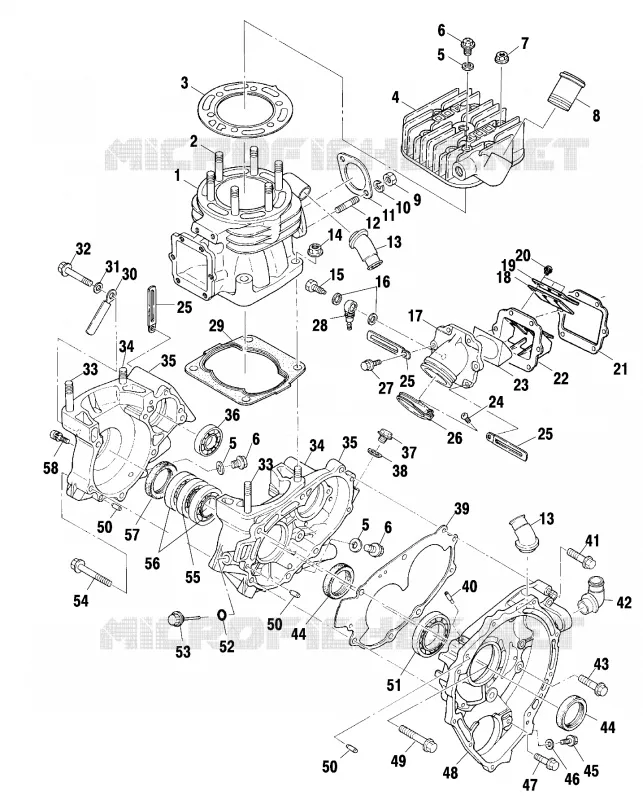

CRANKCASE AND CYLINDER FOR XPLORER 400

CYLINDER (Incl. 2 12 13)

3086753

Not Available

STUD

3084138

Not Available

GASKET HEAD (Head)

3084731

Not Available

CYLINDER-HEAD (Incl. 8)

3086755

Not Available

GASKET ALUM (10) Substituted by 7555998

3082758

7555998

$2,09 Unit Price incl. VAT

PLUG Substituted by 3083767

3086744

$7,76 Unit Price incl. VAT

NUT-FLANGE(10)

3082910

Not Available

PIPE-WATER Substituted by 3083452

3086756

Not Available

NUT(10)

3080285

Not Available

WASHER LOCK (10)

3080530

$6,29 Unit Price incl. VAT

GASKET-EXHAUST

3086757

Not Available

STUD (10)

3085326

Not Available

PIPE-1 ELBOW

3086746

$73,07 Unit Price incl. VAT

NUT FLANGE

3082911

7547013

$3,14 Unit Price incl. VAT

BOLT-BANJO Substituted by 3083137

3086758

Not Available

WASHER(10) Substituted by 7555998

3083138

7555998

$2,09 Unit Price incl. VAT

ADAPTER CARB.

3085277

Not Available

VALVE REED(10)

3240064

Not Available

STOPPER

3240065

Not Available

SCREW&WASHER Substituted by 3084565

3240066

Not Available

GASKET-REED VALVE Substituted by 3084148

3086760

Not Available

VALVE ASM. REED

3084147

Not Available

STUFFER (REED VALVE ASM.)

3240164

$15,95 Unit Price incl. VAT

SCREW

3081497

$4,19 Unit Price incl. VAT

CLAMP

3083590

$7,34 Unit Price incl. VAT

BAND ASM. (Adapter)

3084144

Not Available

BOLT-FLANGE ADAPTER Substituted by 3087150

3086759

Not Available

VALVE CHECK

3083894

Not Available

GASKET CYLINDER

3084729

$89,24 Unit Price incl. VAT

CLAMP

3083384

Not Available

WASHER(10)

3080142

Not Available

BOLT FLANGE

3084124

Not Available

STUD

3084118

Not Available

STUD

3084119

$17,84 Unit Price incl. VAT

ASM-CRANKCASE (See Footnote)

3086740

Not Available

BEARING BALL

3084123

Not Available

PLUG

3086749

Not Available

GASKET

3082956

$9,44 Unit Price incl. VAT

GASKET-CASE 3

3086748

Not Available

PIPE BREATHER (Breather)

3084128

Not Available

SCREW

3086751

Not Available

Pipe 2 Elbow

3086747

Not Available

BOLT-FLANGE Substituted by 3084435

3086752

Not Available

SEAL OIL

3084120

Not Available

PLUG Substituted by 3085152

3086750

Not Available

GASKET ALUMINUM(10)

3083482

Not Available

BOLT-FLANGE Substituted by 3084126

3086743

Not Available

CRANKCASE 3 (See Footnote)

3086745

$743,39 Unit Price incl. VAT

BOLT FLANGE

3084134

Not Available

PIN-DOWEL Substituted by 3080103

3086741

$13,64 Unit Price incl. VAT

BEARING BALL

3084131

Not Available

O-RING

3084733

Not Available

GAUGE-OIL

3086761

Not Available

BOLT-FLANGE

3086742

Not Available

BEARING BALL

3084775

$74,54 Unit Price incl. VAT

BEARING BALL

3084121

$68,24 Unit Price incl. VAT

SEAL OIL

3084725

Not Available

SCREW & WASHER(10)

3084205

$7,34 Unit Price incl. VAT
