CARBURETOR STARLITE/0933427 (4922972297034A)
5
Parts Diagram
Parts Catalog
CRANKCASE AND CYLINDER STARLITE/0933427 (4922972297029A)
by
OIL PUMP ASSEMBLY LITE/0933433 AND LITE DELUXE/0933431 (4922972297035A)

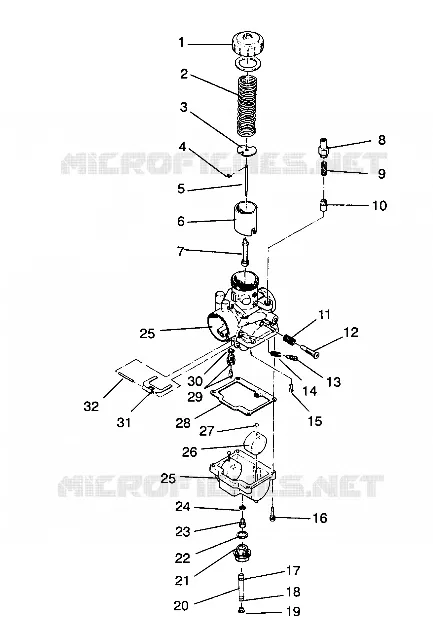

CARBURETOR STARLITE/0933427 (4922972297034A)
1
TOP MIX CHAMBER (Incl. 3)
3130060
Not Available
2
SPRING-THROTTLE Substituted by 3130344
3130281
Not Available
3
PLATE THROTTLE
3130002
$47,24 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE(5DT2-3) (5DT2-3)
3130473
Not Available
6
VALVE THROTTLE (3.0)
3130323
Not Available
7
NEEDLE JET O-8 (0-8)
3130453
$38,42 Unit Price incl. VAT
8
CAP PLUNGER
3130359
$31,49 Unit Price incl. VAT
9
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
10
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
11
SPRING THROTTLE ADJUSTER
3130010
$18,89 Unit Price incl. VAT
12
SCREW THROTTLE STOP
3130324
$36,74 Unit Price incl. VAT
13
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
14
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
15
JET PILOT #60(10) (No. 80)
3130071
Not Available
16
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
17
CLAMP
7080236
$3,14 Unit Price incl. VAT
18
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
19
PLUG TRAP Substituted by 5431893
5431001
5431893
$26,24 Unit Price incl. VAT
20
FUEL LINE 3/8(GAUGE) Substituted by 8450003
8450041
8450003-1525
$136,49 Unit Price incl. VAT
21
FITTING SEDIMENT CARB. Substituted by 3130573
5020647
3130573
$68,24 Unit Price incl. VAT
22
O-RING
3130239
Not Available
23
JET MAIN HX.HD#140 (#140)
3130111
Not Available
24
WASHER
3130014
$3,14 Unit Price incl. VAT
25
CARBURETOR (STARLITE) (Incl. 1-16 21-32)
3130472
Not Available
26
FLOAT ASM
3130021
$83,99 Unit Price incl. VAT
27
CAP
3130237
$8,39 Unit Price incl. VAT
28
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
29
VALVE NEEDLE Substituted by 3131146
3130016
3131146
$99,74 Unit Price incl. VAT
30
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
31
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
32
PIN FLOAT
3130043
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
