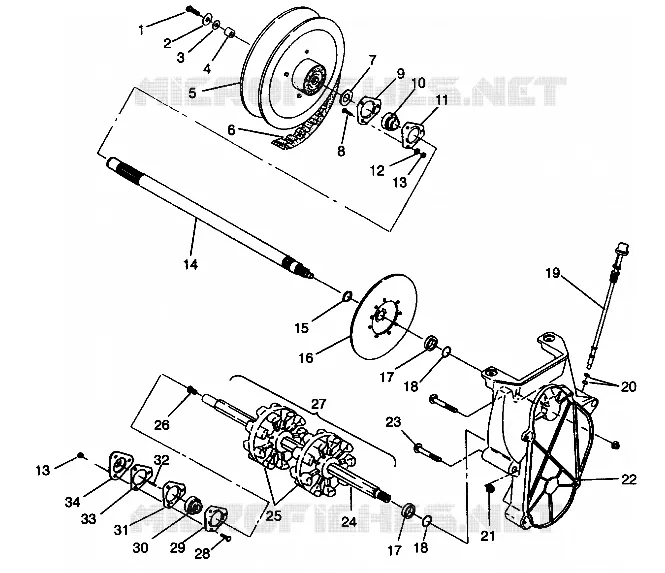

DRIVE TRAIN ASSEMBLY LITE GT 0943133 AND STARLITE GT 0943127 (49250125010016) FOR STARLITE GT - 0943127 FROM 1994

DRIVE TRAIN ASSEMBLY LITE GT 0943133 AND STARLITE GT 0943127 (49250125010016)

1

SCREW

7515369

$9,44 Unit Price incl. VAT

2

WSHR-.344X.750X.062-Y

7555701

$7,34 Unit Price incl. VAT

3

WASHER FLAT .344x.875x.063

7555734

$1,56 Unit Price incl. VAT

4

SPACER DRIVEN CLUTCH (Deluxe)

5020645

$15,74 Unit Price incl. VAT

5

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

6

BELT DRIVE(5) (Lite GT)

3211058

$102,47 Unit Price incl. VAT

6

BELT DRIVE (StarLite GT)

3211060

Not Available

7

BUSHING

7556509

$3,14 Unit Price incl. VAT

8

BOLT(10) Substituted by 7512377

7512394

$9,44 Unit Price incl. VAT

9

FLANGETTE W/GREASE GROOVE 2-BOLT

5222647

$47,24 Unit Price incl. VAT

10

BEARING JACKSHAFT

3514519

Not Available

11

FLANGETTE 2 BOLT

5222393

$36,74 Unit Price incl. VAT

12

WASHER-.344X.688X.063 FL-Y

7558402

$1,56 Unit Price incl. VAT

13

NUT-5/16-18 NYLOK-Y [INTL]

7542324

$1,56 Unit Price incl. VAT

14

JACKSHAFT ASM. (Incl. 17) (Deluxe)

1332146067

Not Available

15

RING RETAINING(10)

7710423

Not Available

16

DISC ASM BRAKE

1910086

Not Available

17

SLEEVE SEAL

5020588

$40,94 Unit Price incl. VAT

18

O-RING

5410613

$3,66 Unit Price incl. VAT

19

DIPSTICK Substituted by 1332143

5431419

$89,24 Unit Price incl. VAT

20

O-RING

5410675

$3,14 Unit Price incl. VAT

21

NUT FLANGE

7542423

$7,34 Unit Price incl. VAT

22

DESC NOT_AVAILABLE (See Pg. A16)

1332159

Not Available

23

BOLT(10)

7515428

$9,44 Unit Price incl. VAT

24

DRIVE SHAFT Substituted by 6230083

6230067

Not Available

25

SPROCKET 9T

5430571

Not Available

26

BUSHING METAL SPEEDO

3280019

$20,99 Unit Price incl. VAT

27

DRIVESHAFT ASM. Substituted by 1590246 (Incl. 28 30 31)

1590230

Not Available

28

BOLT CARRIAGE

7512331

$7,34 Unit Price incl. VAT

29

FLANGETTE

5222751

$26,24 Unit Price incl. VAT

30

BEARING DRIVESHAFT

3514518

Not Available

31

FLANGETTE

5240252

Not Available

32

SQ. KEY SPEEDOMETER (10)

3280017

$26,24 Unit Price incl. VAT

33

GASKET

5830012

$4,19 Unit Price incl. VAT

34

ADAPTER DRIVE W/ZERK

3280116

$188,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
