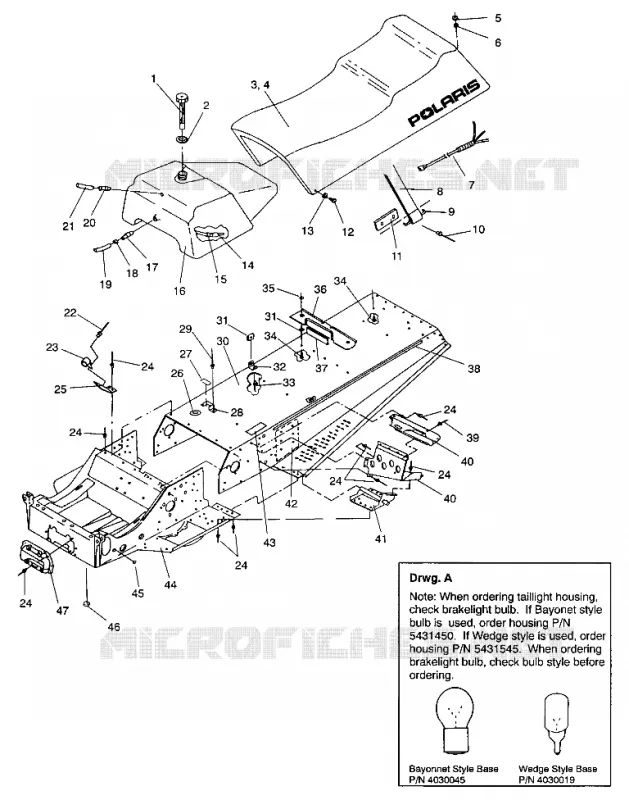

TUNNEL AND SEAT ASSEMBLY LITE GT/0933133 AND STARLITE GT/0933127 (4923232323001A)
5
Parts Diagram
Parts Catalog
CLUTCH GUARD/REFLECTOR ASSEMBLY EUROPEAN 440,440 SKS,500 EFI,EFI SKS,LITE (49237723770003)
by
HOOD
TUNNEL AND SEAT ASSEMBLY LITE GT/0933133 AND STARLITE GT/0933127 (4923232323001A)
1
CAP GAS W/GAUGE Substituted by 2511245
2511213
Not Available
2
GASKET GAS CAP
5810513
$15,74 Unit Price incl. VAT
3
SEAT ASM (LITE GT)
2681518
Not Available
4
COVER SEAT (LITE GT)
2681519
Not Available
5
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
6
WASHER
7558403
$9,44 Unit Price incl. VAT
7
HARNESS-TAILLIGHT
2460237
Not Available
8
BELT SEAT
7080434
Not Available
9
WIRE-SEAT-BELT
5223864
Not Available
10
RIVET-POP 5/32(.251-.375)-ST-B
7621323
$2,09 Unit Price incl. VAT
11
PLATE-SEAT BELT
5210842
Not Available
12
SCREW(10)
7515111
$13,64 Unit Price incl. VAT
13
WASHER NYLON
7555798
$1,56 Unit Price incl. VAT
14
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
15
RING COMPRESSION
7080402
$3,14 Unit Price incl. VAT
16
TANK FUEL
2511215
Not Available
16
TANK FUEL (LITE GT) Substituted by 2520179
2511214
Not Available
16
TANK FUEL Substituted by 2511214
5431353
Not Available
17
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
17
FITTING OUTLET (StarLite GT)
7052056
$11,01 Unit Price incl. VAT
18
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
8450003-1525
$136,49 Unit Price incl. VAT
20
VENT FITTING TANK Substituted by 5430579
5430669
Not Available
20
FITTING (10)
7052077
Not Available
21
LINE VENT (38.0##) Substituted by 8360009-600
5521087
8360009-600
$83,99 Unit Price incl. VAT
22
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
23
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
24
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
25
BRKT ROPE GUIDE BLK. (StarLite GT)
5222687067
$89,24 Unit Price incl. VAT
26
GROMMET RUBBER
5410021
Not Available
27
PAD OIL TANK
5810522
Not Available
28
BRKT LOW.OILTANK
5222673
Not Available
29
RIVET-CHERRY Q-3/16X.325-Z
7621453
Not Available
30
TUNNEL (LITE GT) (Incl. 31 & 42)
1011864
Not Available
31
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
32
BRKT CONSOLE/SEAT MT.
5222452067
$41,04 Unit Price incl. VAT
33
RIVET(50)
7621470
Not Available
34
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
35
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
36
STRAP GAS TANK Substituted by 5222330-067
5221722
Not Available
37
CUSHION TANK H.D.
5420126
Not Available
38
DECAL (42##) TUNNEL [No Longer Available]
7073556
Not Available
39
RIVET (50)
7661827
Not Available
40
FOOTREST ASM LH
1011830
Not Available
40
FOOTREST ASM RH (STARLITE)
1011826
Not Available
41
SUPPORT LH TRLG.ARM BLK.
1011792067
Not Available
41
SUPPORT RH TRLG.ARM BLK.
1011793067
Not Available
42
BRKT FR.SUSP BLK.
5220542067
Not Available
43
PAD AIR BOX
5810502
Not Available
44
BULKHEAD (STARLITE) (StarLite GT)
1011885067
Not Available
44
BULKHEAD (LITE GT)
1011815067
Not Available
45
PLUG-HOLE
7080416
$12,59 Unit Price incl. VAT
46
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
47
MOUNT RADIUS ROD Substituted by 5630924
5130759
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
