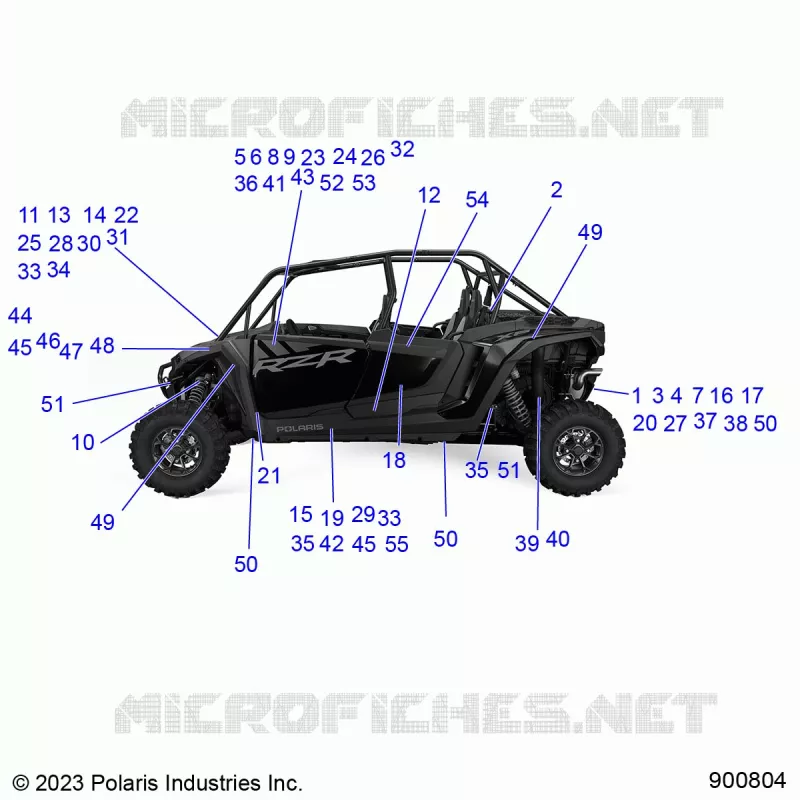

DECALSS, COMPONENTS, 3PC FOR RZR XP 4 1000 SPORT MD 3PC FROM 2024

DECALSS, COMPONENTS, 3PC

1

TAILLIGHT-LICENCE PLATE

3150125

Not Available

2

DECAL-TIRE PRESSURE 3PC

3150160

Not Available

2

K-ASM-CARGO BOX CMP MLD

2212167

Not Available

3

GASKET-TRAILER SOCKET

3150105

Not Available

4

COVER-TRAILER SOCKET GASKET

3150106

Not Available

5

LIGHT SWITCH-RGR RZR

3150108

Not Available

6

SUPPORT-TURN STALK RZR

3150044

Not Available

7

HITCH-TOW TRACTOR

3150110

Not Available

8

BUZZER-HANDBRAKE

3150111

Not Available

9

SENSOR LIGHT-FLUID LEVEL

3150112

Not Available

10

SENSOR-FLUID LEVEL

3150113

Not Available

11

ELEC-MOBO SPEED EU5 RZR 1KÃ¯Â¿Â½Ã¯Â¿Â½Ã¯Â¿Â½Ã¯Â¿Â½ [RM]

315000640

Not Available

11

ELEC-MOBO SPEED EU5 RZR 1K [SM]

315000641

Not Available

12

LABEL-MFG 3PC

3150127

Not Available

13

BRKT-GEAR SENSOR RZR

3150168

Not Available

14

BRKT-SHIFT.LEV.SWITCH

3150171

Not Available

15

SENSOR-SEAT SECURITY

3150114

Not Available

16

HITCH-TOW TRACTOR

3150164

Not Available

17

BRKT-TRAILER SOCKET RGR CREW

3150115

Not Available

18

DECAL-TAG ROPS TRACTOR

3150145

Not Available

19

SWITCH-SEAT SECURITY SENSOR

3150116

Not Available

20

BRACKET-LICENCE PLATE

3150165

Not Available

21

BRAKE-EMERGENCY PEDAL TR CREW

3150117

Not Available

22

FLASHER-LED CF12 12V ALL MODEL

3150075

Not Available

23

LIGHTS-PARKING BRAKE BLINKING

3150172

Not Available

24

POSITION-LIGHT INDICATOR RZR4S

3150173

Not Available

25

HORN

3150059

Not Available

26

LIGHTS-HAZARD BLINKING

3150061

Not Available

27

LIGHT-LICENCE PLATE

3150146

Not Available

28

SYSTEM-HAZARD

3150062

Not Available

29

HARNESS-MAIN

3150063

Not Available

30

HARNESS-ADAPTER LIGHTSWITCH

3150064

Not Available

31

HARNESS-FLUID LEVEL SENSOR

3150121

Not Available

32

SENSOR-PARKING BRAKE

3150122

Not Available

33

HARNESS-SPEED CTRL RGR/RZR

3150027

Not Available

34

HARNESS-FRONT RZR

3150166

Not Available

35

HARNESS-SPEED CTRL EXTENSION

3150149

Not Available

36

INDICATORS-INPUTS RZR PRO

3150067

Not Available

37

HARNESS-TRAILER SOCKET RELAY

3150147

Not Available

38

HARNESS-TRAILER SOCKET LINK

3150148

Not Available

39

HARNESS-TRAILER SOCKET

3150120

Not Available

40

HARNESS-REAR RGR 900 XP

3150065

Not Available

41

HARNESS-STOP LIGHT

3150119

Not Available

42

HARNESS-SEAT SENSOR RZR

3150170

Not Available

43

HARNESS-SECURITY SYSTEM

3150167

Not Available

44

CAST-MIRROR UPPER LH

5634633

Not Available

45

CAST-MIRROR UPPER RH

5634634

Not Available

46

CAST-MIRROR LOWER

5634635

Not Available

47

BRKT-INDICATORS RR RH RGR CREW

3150156

Not Available

48

BRKT-INDICATORS RR LH RGR CREW

3150157

Not Available

49

DECAL-OM QR 3PC

3150131

Not Available

50

K-PANEL ROCKER RH MP BLK

2212164

Not Available

50

K-WELD-FRAME MAIN MP BLK

2212163

Not Available

50

K-PANEL ROCKER LH MP BLK

2212165

Not Available

50

DECAL-LIFT POINT 3PC

3150158

Not Available

51

K-BAR-STABILIZER 3PC 25MM

2212162

Not Available

51

DECAL-GREASING POINT 3PC

3150159

Not Available

51

K-BAR-STABILIZER 3PC

2212161

Not Available

52

K-LID-STORAGE LH BLK

2212168

Not Available

52

DECAL-OM QR 3PC

3150131

Not Available

53

K-LOWER IP BLK

2212169

Not Available

54

K-WELD-ROPS B-PILLAR MP BLK

2212166

Not Available

55

HARNESS-INDICATOR DASH.RZR

3150174

Not Available

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
