1
Engine displacement
500
2
Year
1999
3
Trim
MAGNUM 500 - A99CD50AA
4
Parts Catalog
FUEL TANK
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
AIR BOX

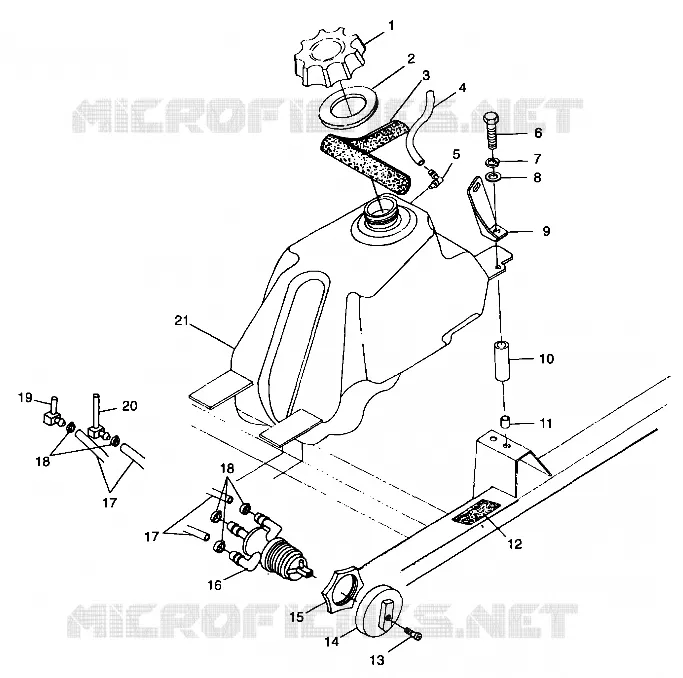

FUEL TANK
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
1
CAP GAS (BLACK)
5430725
$47,24 Unit Price incl. VAT
2
GASKET-GAS CAP
5810144
$10,49 Unit Price incl. VAT
3
FOAM SEAL
5811052
Not Available
4
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
5
Vent Tank
5431053
$47,24 Unit Price incl. VAT
6
SCR-HH-1/4-20X2.75 GR5 ZY3
7517451
$10,49 Unit Price incl. VAT
7
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
8
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
9
BRKT RH.R.FUELCOVER BLK.
5222155067
Not Available
9
BRKT LH.R.FUELCOVER BLK.
5222154067
Not Available
10
Spacer
5332457
Not Available
11
NUTSERT-1/4-20 HEX .165 GRIP
7547069
$7,34 Unit Price incl. VAT
12
PAD
5810317
Not Available
13
SCR-4MMX.7X10MM-PH/PN Y LOC
7517505
$3,14 Unit Price incl. VAT
14
KNOB FUEL VALVE (If built before 1/14/00)
5432559
$20,99 Unit Price incl. VAT
15
NUT FUELVALVE ATV (If built before 1/14/00)
5432733
Not Available
16
VALVE 3-WAY HORIZ PORTS
7052154
$83,99 Unit Price incl. VAT
17
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
18
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
19
Fitting Fuel Outlet Reserve 90 Degree
7052148
7052348
$17,84 Unit Price incl. VAT
20
Fitting Fuel Outlet Main 90 Degree
7052147
Not Available
21
Asm. Fuel Tank [Incl. 23 24 30]
2520143
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
