1
Engine displacement
700
2
Year
1998
3
Trim
700 XCR - 0985678A
4
Parts Catalog

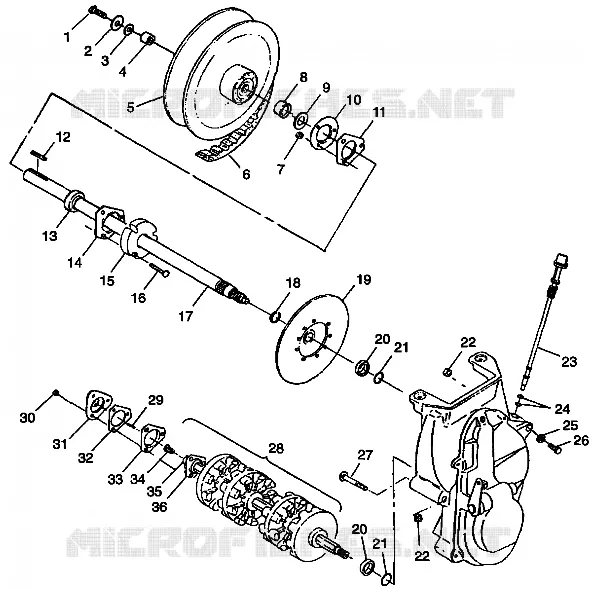

DRIVE TRAIN 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311B008)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311B002)
by
COOLING SYSTEM 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311B009)
DRIVE TRAIN 700 XCR 0985678(A) AND EUROPEAN 700 XCR E985678 (4943114311B008)
1
SCREW
7515369
$9,44 Unit Price incl. VAT
2
WSHR-.344X.750X.062-Y
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020913
5135621
$13,64 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
BELT DRIVE(5)
3211066
$141,21 Unit Price incl. VAT
7
NUT
7542344
$7,34 Unit Price incl. VAT
8
SPACER
5020837
$34,64 Unit Price incl. VAT
9
BUSHING
7556509
$3,14 Unit Price incl. VAT
10
FLANGE RD RELUBE W/ZERK
5241359
$62,99 Unit Price incl. VAT
11
GASKET JACKSHAFT BLACK
5811095
$4,19 Unit Price incl. VAT
12
KEY(10)
7721116
$26,24 Unit Price incl. VAT
13
BEARING
3514525
$54,59 Unit Price incl. VAT
14
FLANGETTE
5222751
$26,24 Unit Price incl. VAT
15
SPACER BRG JACKSHAFT
5131443
$65,40 Unit Price incl. VAT
16
BOLT CARRIAGE(10)
7515383
Not Available
17
JACKSHAFT ASM LONG 15T Substituted by 1332228 (Incl. 13 18)
1332208
Not Available
18
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
19
DISC ASM BRAKE
1910086
Not Available
20
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
21
O-RING
5410613
$3,66 Unit Price incl. VAT
22
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
23
DIPSTICK Substituted by 1332143
5431419
1332143
$89,24 Unit Price incl. VAT
24
O-RING
5410675
$3,14 Unit Price incl. VAT
25
WASHER(10) Substituted by 7558403
7555955
7558403
$9,44 Unit Price incl. VAT
26
BOLT(10)
7515485
$5,24 Unit Price incl. VAT
27
BOLT(10)
7515428
$9,44 Unit Price incl. VAT
28
DRIVESHAFT ASM W/M15 BRG 4 DR (Incl. 27 28 29)
1590266
Not Available
29
SQ. KEY SPEEDOMETER (10)
3280017
$26,24 Unit Price incl. VAT
30
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
31
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT
32
GASKET
5830012
$4,19 Unit Price incl. VAT
33
FLANGETTE Substituted by 5243529
5241178
$26,24 Unit Price incl. VAT
34
BUSHING METAL SPEEDO
3280019
$20,99 Unit Price incl. VAT
35
BEARING LUBE. Substituted by 3514525
3514526
3514525
$54,59 Unit Price incl. VAT
36
FLANGETTE ASM W/ SCREWS Substituted by 1012945
1012434
$173,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
