1
Engine displacement
700
2
Year
2003
3
Trim
700 / 800 SKS
4
Parts Catalog

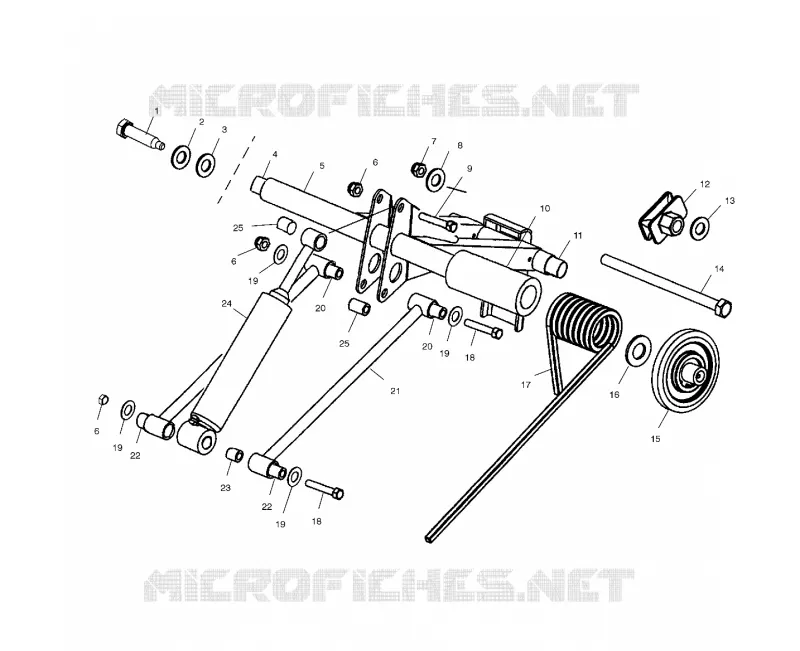

REAR TORQUE ARM
5
Parts Diagram
Parts Catalog
FRONT TORQUE ARM
by
CHAINCASE
REAR TORQUE ARM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
17
17
18
18
19
19
19
19
20
20
21
22
22
23
24
25
25
1
BOLT
7517435
$22,56 Unit Price incl. VAT
2
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
3
WASHER FLAT
7555893
$1,56 Unit Price incl. VAT
4
Shaft
5133165
Not Available
5
Arm Torque Rear Yellow
1541615216
$297,14 Unit Price incl. VAT
5
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
6
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
7
NUT-5/16-24 NYLOK GR8 Y
7547217
$7,34 Unit Price incl. VAT
8
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
9
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
10
SLEEVE TORSION SPRING
5434337
$13,64 Unit Price incl. VAT
11
SHAFT
5333997
$141,74 Unit Price incl. VAT
12
ROLLER SPRING ADJUSTABLE SQUARE
5432983
$19,94 Unit Price incl. VAT
13
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
14
SCREW
7517908
$18,89 Unit Price incl. VAT
15
WHEEL CARRIER W/COLLAR
1541285
Not Available
16
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
17
Spring Torsion LH (Opt.)[.375/47]
7042079067
$209,99 Unit Price incl. VAT
17
Spring Torsion LH (Std.)[.359/47]
7042068067
Not Available
17
Spring Torsion RH (Opt.)[.375/47]
7042080067
$209,99 Unit Price incl. VAT
17
Spring Torsion LH (Opt.)[.374/47]
7042081067
$209,99 Unit Price incl. VAT
17
Spring Torsion RH (Std.)[.359/47]
7042069067
Not Available
17
Spring Torsion RH (Opt.)[.374/47]
7042082067
Not Available
18
SCREW
7515496
$17,84 Unit Price incl. VAT
19
WASHER WAVE SPRING(10)
7555795
$2,09 Unit Price incl. VAT
20
BUSHING
5133101
$13,64 Unit Price incl. VAT
21
ROD SHOCK BLACK
1541631067
Not Available
22
BUSHING
5132391
$13,64 Unit Price incl. VAT
23
SLEEVE .385X.560X1.24
5333905
$27,29 Unit Price incl. VAT
24
Shock Rear Track IFP
7042177
Not Available
25
Bushing .385 ID
5010422
$18,89 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
