1
Engine displacement
0
2
Year
2005
3
Trim
RANGER TM - R05RB63AA
4
Parts Catalog
SEAT
5

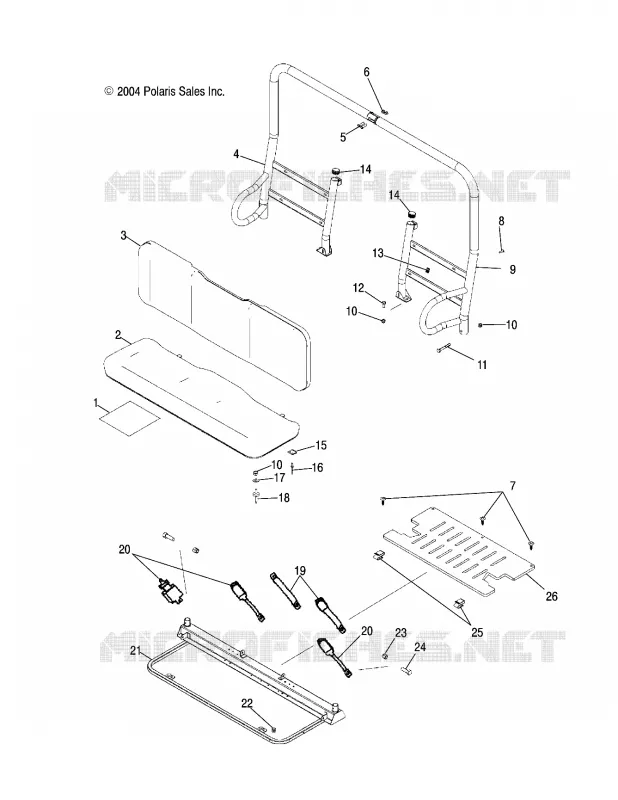

Parts Diagram
Parts Catalog
by
CHASSIS/BODY
SEAT
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
14
15
16
17
18
19
20
20
21
21
22
23
24
25
26
1
FOIL-SEAT
5812295
$18,89 Unit Price incl. VAT
2
Asm. Seat Bottom [Incl. 1 10 17-20]
2682638317
$1 081,49 Unit Price incl. VAT
3
Asm. Seat Back
2683124317
Not Available
4
Asm. Back Seat RH [Incl. Decal 7172676]
1014846
$410,54 Unit Price incl. VAT
5
SCR-3/8 16X1 1/4 HXSOC CS ZY3
7517935
$4,19 Unit Price incl. VAT
6
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
7
SCR-1/4-20X3/4-TR/TX/TAP-M
7517916
$11,54 Unit Price incl. VAT
8
SCR-1/4-20X1 TRX TRHD GR5-M
7517230
$2,09 Unit Price incl. VAT
9
Asm. Back Seat LH [Incl. Decal 7172676]
1014845
$370,64 Unit Price incl. VAT
10
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
11
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
$9,44 Unit Price incl. VAT
12
BOLT(10)
7515321
Not Available
13
NUT-CHIMNEY 1/4-20 GR-5
7670096
$3,14 Unit Price incl. VAT
14
Cap End Bumper (AC)(AD)
5433305
$10,49 Unit Price incl. VAT
15
Tab Seat Mount
5245676
Not Available
16
RVT-3/16(.187-.375)AL-AL/BULBX
7621479
$3,66 Unit Price incl. VAT
17
WASHER FLAT .344x.875x.063
7555734
$1,56 Unit Price incl. VAT
18
PIN SEAT LATCH
5910096
$41,99 Unit Price incl. VAT
19
Asm. Seat Belt Center
2632422
2635053
$178,49 Unit Price incl. VAT
20
Asm. Seat Belt
2632421
$272,99 Unit Price incl. VAT
21
Base Cab/Seat Black
1015102067
Not Available
21
Base Cab/Seat Black (If built before 11/15/04)
1014753067
Not Available
22
GROMMET
5412507
$12,59 Unit Price incl. VAT
23
NUT NYLOCK(10)
7542525
$9,44 Unit Price incl. VAT
24
BOLT
7512539
$7,34 Unit Price incl. VAT
25
S-Clip
7670167
Not Available
26
Guard Transmission Top
5812572
$34,32 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
