1
Engine displacement
650
2
Year
1990
3
Trim
SWE 650 SKS - S900558
4
Parts Catalog

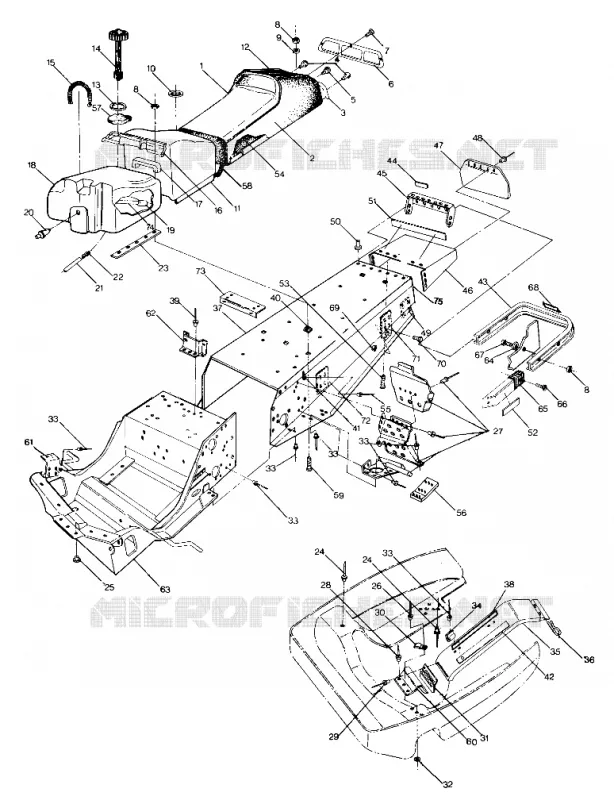

CHASSIS AND SEAT 650 UPDATD 2/90 (4916801680001A)
5
Parts Diagram
Parts Catalog
by
STEERING 650 (4916801680009A)
CHASSIS AND SEAT 650 UPDATD 2/90 (4916801680001A)
1
SEAT ASM.(650SWED.) Substituted by 2200749 (Incl. 2-7 12 54)
2681452
Not Available
2
COVER SEAT(SCAND#650#) [No Longer Available]
2681451
Not Available
3
HOUSING TAILLIGHT
5430425
Not Available
4
BULB TAILLIGHT(10)
4030015
$8,39 Unit Price incl. VAT
5
BULB BRAKELIGHT
4030019
Not Available
6
LENS TAILLIGHT
5430423
Not Available
7
SCREW(10)
7511840
Not Available
8
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
9
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
10
GROMMET-GAS TANK
5430575
Not Available
11
COVER TANK(400/650) Substituted by 2200738
2681427
Not Available
12
BUCKLE&STRAP (Sport 400 600)
2681290
Not Available
13
GASKET-GAS CAP Substituted by 5810513
5810142
5810513
$15,74 Unit Price incl. VAT
14
GAUGE GAS Substituted by 2511246
2511149
2511246
$83,99 Unit Price incl. VAT
15
SPRING TANK FRONT
7042020
$27,29 Unit Price incl. VAT
16
STRAP GAS TANK Substituted by 5222330-067
5221722
Not Available
17
CUSHION TANK H.D.
5420126
Not Available
18
TANK GAS (Incl. 19-22)
2511150
Not Available
19
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
20
FITTING OUTLET DOUBLE
7052023
$36,74 Unit Price incl. VAT
21
KIT-TANK VENT
2200190
Not Available
22
VENT FITTING TANK Substituted by 5430579
5430669
Not Available
23
PAD-GAS TANK
5810063
$7,97 Unit Price incl. VAT
24
RIVET-POP3/16(.251-.375)AL-LFB
7621457
$2,09 Unit Price incl. VAT
25
PLUG-HOLE
7080398
$10,49 Unit Price incl. VAT
26
BLIND RIVET(50)
7621403
$2,09 Unit Price incl. VAT
27
FOOTREST LH (650) (650 Only)
2200303
Not Available
27
KIT RH.FOOTREST(SCAND) [No Longer Available]
2200332
Not Available
28
RIVET(50)
7621452
$2,09 Unit Price incl. VAT
29
RIVET
7621330
$2,09 Unit Price incl. VAT
30
CLIP WIRING (10) Substituted by 7080665
4020035
Not Available
31
HINGE
5210728
Not Available
32
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
33
RIVET CH. Q
7621429
$2,09 Unit Price incl. VAT
34
CLIP BELT Substituted by 5222769 (400 600)
5220817
5222769
$15,74 Unit Price incl. VAT
35
GUARD CLUTCH Substituted by 5240965
5230118
Not Available
36
PIN RETAINING (10)
7080216
7080698
$17,84 Unit Price incl. VAT
37
TUNNEL ASM (#89-650) Substituted by 1011808 (650 Only)
1011665
Not Available
37
DESC NOT_AVAILABLE (650 SKS Only w/1011694)
1011778
Not Available
38
DECAL CLUTCH POLARIS [No Longer Available]
7072558
Not Available
40
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
41
SNAP-MALE(10)
7080227
Not Available
42
DECAL WARNING [No Longer Available] (600 SE)
7072153
Not Available
43
DESC NOT_AVAILABLE
5224421
Not Available
43
BUMPER R.(N-INDY) Substituted by 5224347-067 (Sport Trail)
5224347
Not Available
44
DECAL TRACK SILVER(650) [No Longer Available] (650 Only)
7072637
Not Available
45
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
46
PANEL CLOSE-OFF REAR Substituted by 1011694-067 (Trail SKS Only)
1011694
Not Available
47
FLAP SNOW(RED&BLACK) Substituted by 5410394-1117
5410577
5410394-1038
$194,24 Unit Price incl. VAT
48
POP RIVET(50)
7621418
$2,09 Unit Price incl. VAT
49
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
50
RIVET SEMI-TUBE (50)
7661812
Not Available
51
DECAL SKS RED [No Longer Available] (650 SKS Only)
7072818
Not Available
52
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
53
BOLT
7512103
$6,29 Unit Price incl. VAT
54
SEAT BUN [No Longer Available]
5430707
Not Available
55
RIVET(50)
7621222
$1,04 Unit Price incl. VAT
56
PLATE TUNNEL RH
5220635
Not Available
56
PLATE TUNNEL LH
5220634
Not Available
57
FOAM FILLER
5810201
Not Available
58
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Not Available
59
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
60
BRACKET HINGE Substituted by 5241437
5220406
Not Available
61
SUPT. MUFFLER [No Longer Available]
1011582
Not Available
62
BRACKET Substituted by 5221932-067
5221932
Not Available
63
BULKHEAD (600/650) (600)
1011614
Not Available
64
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
65
CAP BUMPER Substituted by 5430930-070 (TRAIL)
5430930
Not Available
66
SCREW(10)
7511863
$3,66 Unit Price incl. VAT
67
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
68
DECAL 36## R.BUMP [No Longer Available] (650 Only)
7072582
Not Available
69
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
70
BOLT NYLOC BLACK(10) Substituted by 7515432 (650 Only)
7515493
Not Available
71
BRKT R.SUSP LH MTG. Substituted by 1011749-067
1011666
Not Available
71
BRKT R.SUSP RH MTG. Substituted by 1011750-067
1011667
Not Available
72
BRKT. Substituted by 5220542-067
5220542
Not Available
73
BRKT TOOL BOX
5220973
Not Available
74
LINE-BOOST 3/16 ID 85 CM
8450003
8450003-1525
$136,49 Unit Price incl. VAT
75
KNOB ADJ. Substituted by 2670130
7030007
Not Available
75
DESC NOT_AVAILABLE
5222119
Not Available
75
DESC NOT_AVAILABLE (NOR/FIN 650 SKS Only)
2691356
Not Available
75
BRACKET-CLUTCH GUARD [No Longer Available]
5223798
Not Available
75
GRABBAR RH Substituted by 1011730-067
1011697
Not Available
75
REFLECTOR
5430781
Not Available
75
BRACKET HITCH
5220941
Not Available
75
DECAL TUNNEL STRIPE [No Longer Available]
7072776
Not Available
75
BOX TOOL (2-UP SEAT) Substituted by 5431345
5430925
Not Available
75
COVER BACKREST
2681265
Not Available
75
GRIP HAND Substituted by 5433383
5431015
Not Available
75
GRABBAR LH Substituted by 1011729-067
1011696
Not Available
75
PLATE HITCH MOUNT Substituted by 5220942-067
5220942
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
