1
Engine displacement
500
2
Year
2018
3
Trim
RANGER 500 HDPE
4
Parts Catalog

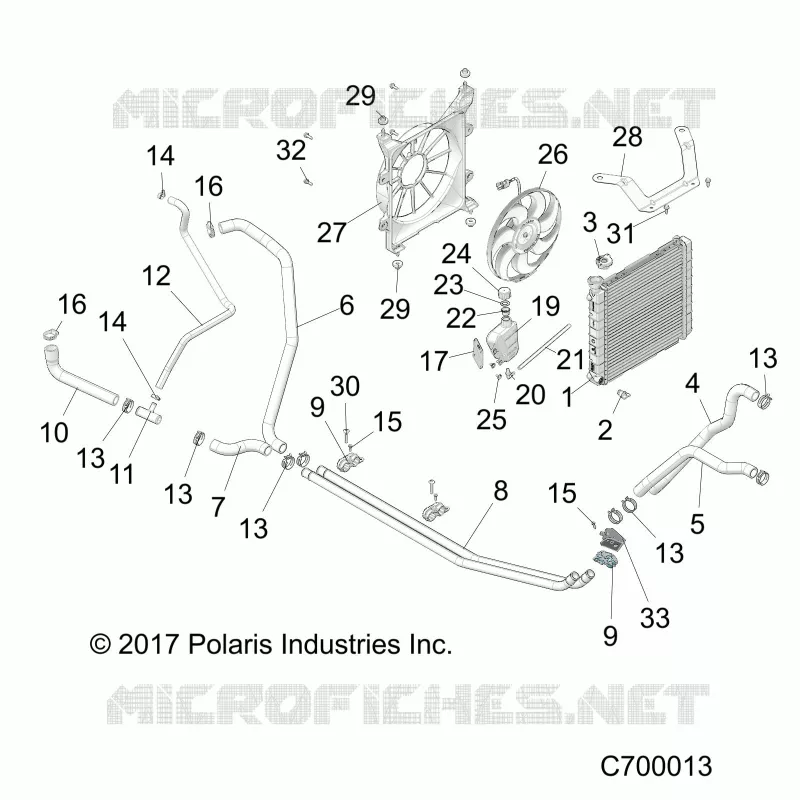

ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
ENGINE, THROTTLE PEDAL
ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
13
13
13
14
14
15
15
16
16
17
19
20
21
22
23
24
25
26
27
28
29
29
30
31
32
33
1
ASM-RADIATOR CORE
1240956
$834,74 Unit Price incl. VAT
2
VALVE-PLASTIC RAD/COOLER DRAIN
7052617
$52,49 Unit Price incl. VAT
3
CAP-PRESSURE
1240899
$73,49 Unit Price incl. VAT
4
HOSE-UPPER RAD
5416386
$99,74 Unit Price incl. VAT
5
HOSE-LOWER RAD
5416387
$83,99 Unit Price incl. VAT
6
HOSE ENGINE OUTLET REAR
5415053
$99,74 Unit Price incl. VAT
7
HOSE-LOWER ENGINE SHORT
5415054
$62,99 Unit Price incl. VAT
8
TUBE-COOLANT 1#
5141420
$73,49 Unit Price incl. VAT
9
BRACKET-COOLANT TUBE
5451221
$16,79 Unit Price incl. VAT
10
HOSE-BYPASS 1IN FORMED
5414162
$73,49 Unit Price incl. VAT
11
CONNECTOR-TEE 1X1X0.5
7052530
$10,49 Unit Price incl. VAT
12
HOSE-BYPASS 1/2IN FORMED
5414590
$83,99 Unit Price incl. VAT
13
CLAMP BROWN OR SILVER 32/12
7080843
$7,34 Unit Price incl. VAT
14
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
15
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
16
CLAMP-HOSE(WORM DR)25-40MM
7081192
$14,69 Unit Price incl. VAT
17
BRACKET SURGE TANK
5254763
$10,49 Unit Price incl. VAT
19
TANK-SURGE
5436936
$152,24 Unit Price incl. VAT
20
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
21
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
22
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
$10,49 Unit Price incl. VAT
23
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
24
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
25
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
26
FAN-ASSEMBLY SHROUD
2413196
$493,49 Unit Price incl. VAT
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
28
BRACKET RADIATOR MOUNT MATTE BLACK
5260846458
$62,99 Unit Price incl. VAT
29
GROMMET-FLANGED .36X.56X1.06
7052028
$11,54 Unit Price incl. VAT
30
SCR-TXTH-M6X1.0X50 8.8 ZPB
7519001
$7,34 Unit Price incl. VAT
31
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
32
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$4,19 Unit Price incl. VAT
33
BRKT-COOLANT TUBE MNT BLK
5265091329
$26,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
