1
Engine displacement
500
2
Year
2018
3
Trim
RANGER 500 HDPE
4
Parts Catalog

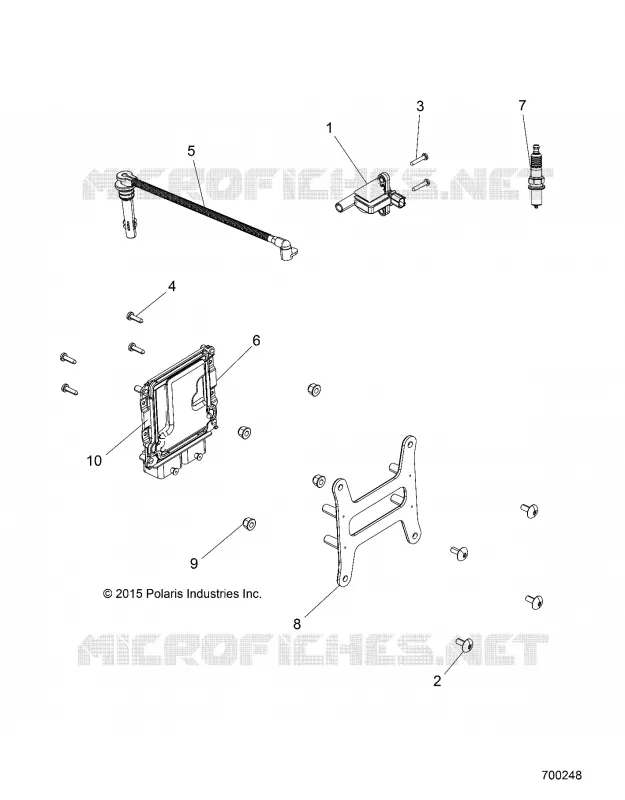

ELECTRICAL, IGNITION
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR DRIVE SHAFT
by
ELECTRICAL, SENSORS
ELECTRICAL, IGNITION
1
2
3
4
5
6
7
8
9
10
1
COIL-IGNITION SINGLE W/DIODE
4015072
$204,74 Unit Price incl. VAT
2
SCR-1/4-20X5/8 TORX TRUSS
7518905
$7,34 Unit Price incl. VAT
3
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$2,09 Unit Price incl. VAT
4
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
5
WIRE-SPARKPLUG
4016000
$115,49 Unit Price incl. VAT
6
ECM-HARD ME17 2CYL 250K
4014125
$1 123,49 Unit Price incl. VAT
7
SPARK PLUG-14MM
3023104
$11,54 Unit Price incl. VAT
8
MOUNT ECM BLACK
5450605070
$20,99 Unit Price incl. VAT
9
NUT-1/4-20 NYLOC FLANGED-B
7547494
$7,34 Unit Price incl. VAT
10
COVER ECM
5438786
$20,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
