1
Engine displacement
1000
2
Year
2022
3
Trim
GENERAL XP 1000 DELUXE RIDE COMMAND
4
Parts Catalog

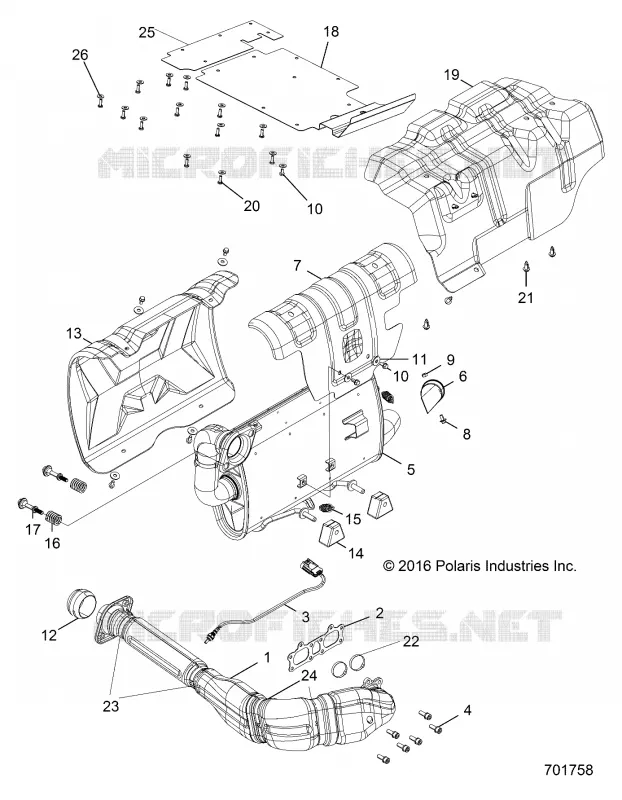

ENGINE, EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, DIPSTICK & OIL FILTER
by
ENGINE, MOUNTING
ENGINE, EXHAUST SYSTEM
1
2
3
4
5
5
6
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
ASM. HEADPIPE [INCL. 2-4]
1262674
$850,49 Unit Price incl. VAT
2
GASKET-EXHAUST SEAL
3610184
$89,24 Unit Price incl. VAT
3
SENSOR OXYGEN
4016021
$314,99 Unit Price incl. VAT
4
SCR-HXFL-M5X0.8X12 4.8 ZPC NYL
7518984
$14,69 Unit Price incl. VAT
5
ASM-SILENCER [INCL. 6-9 QTY 2 OF 10 &11]
1263704
$1 133,99 Unit Price incl. VAT
5
ASM-SILENCER [INCL. 3 6-11]
1263243
$1 133,99 Unit Price incl. VAT
6
WELD-SPARK ARRESTOR AVA875
1262123
$99,74 Unit Price incl. VAT
6
WELD-SPARK ARRESTOR AVA875
1263707
$104,99 Unit Price incl. VAT
7
SHIELD-SILENCER
5260630
$141,74 Unit Price incl. VAT
8
SCREW-HXFL-M6X1.0X12 10.9 ZPC
7517257
$17,84 Unit Price incl. VAT
9
NUT-HEX-M6X1.0 8 SPC
7547120
$9,44 Unit Price incl. VAT
10
SCR-1/4-20X1/2 TFM HW-M
7518490
$2,09 Unit Price incl. VAT
11
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
12
GASKET-DOUBLE SPHERICAL 2#
3610248
$68,24 Unit Price incl. VAT
13
SHIELD-SILENCER OUTER BLK
5260918458
$225,74 Unit Price incl. VAT
14
MOUNT ISOLATOR
5450115
$31,49 Unit Price incl. VAT
15
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
16
SPRING SPHERICAL EXHAUST
7044274
$29,39 Unit Price incl. VAT
17
STUD-SPHERICAL EXHAUST
7520079
$25,19 Unit Price incl. VAT
18
SHIELD-BOX
5266813
$136,49 Unit Price incl. VAT
19
SHIELD-FOIL
5814260
$141,74 Unit Price incl. VAT
20
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
21
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
22
CLAMP-HEAT SHIELD EXHAUST
7081156
$13,64 Unit Price incl. VAT
23
CLAMP HEAT SHIELD EXHAUST
7081579
$13,64 Unit Price incl. VAT
24
CLAMP-HEAT SHIELD EXHAUST
7081915
$13,64 Unit Price incl. VAT
25
SHIELD-BOX REAR
5263934
$36,74 Unit Price incl. VAT
26
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
