1
Engine displacement
570
2
Year
2023
3
Trim
RANGER 570 FULL SIZE
4
Parts Catalog
FLOOR AND FENDERS
5
Parts Diagram
Parts Catalog
DECALSS, GRAPHICS
by
GLOVE BOX

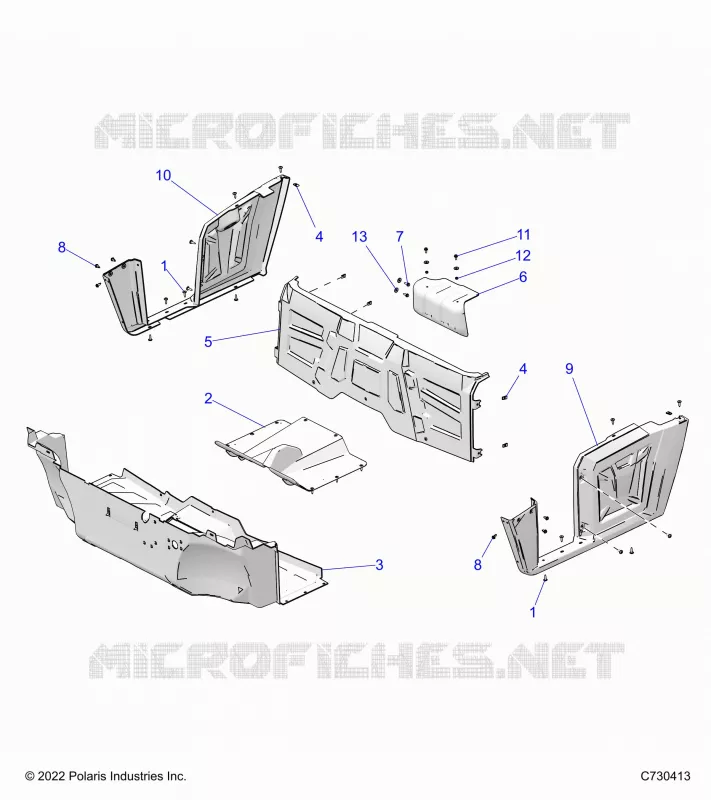

FLOOR AND FENDERS
1
1
2
3
4
4
5
6
7
8
8
9
10
11
12
13
1
SCR-1/4-20X1.00 TR/TX-M
7517685
$3,14 Unit Price incl. VAT
2
COVER-DRIVE SHAFT FLOOR BLK
5437657070
$125,99 Unit Price incl. VAT
3
ASM-FLOOR MAIN RANGER BLK [INCL. 4 QTY 9]
2635980070
$981,74 Unit Price incl. VAT
4
NUT U-TYPE SPEED
7670057
$2,09 Unit Price incl. VAT
5
FLOOR-REAR RANGER BLK
5438797070
2204389
$430,49 Unit Price incl. VAT
6
SHIELD-HEAT FLOOR-REAR
5264245
$120,74 Unit Price incl. VAT
7
SCR-M6X1.0X20 HXHD FLG TDFM BK
7518529
$2,09 Unit Price incl. VAT
8
RIVET-TUFLOK .315-.325X.787 ?
7661855
$2,09 Unit Price incl. VAT
9
FENDER-REAR W/ROCKER LH BLK
5437566070
$362,24 Unit Price incl. VAT
10
FENDER-REAR W/ROCKER RH BLK
5437567070
$362,24 Unit Price incl. VAT
11
SCREW-HXFL-M6X1.0X16 8.8 ZPB
7518591
$6,29 Unit Price incl. VAT
12
NUT-HEX-M6X1.0 8 SPC
7547120
$9,44 Unit Price incl. VAT
13
WASHER-.28 X .81 X .06 ST-M
7555935
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
