1
Engine displacement
500
2
Year
1993
3
Trim
500 EFI SKS - 0930574
4
Parts Catalog

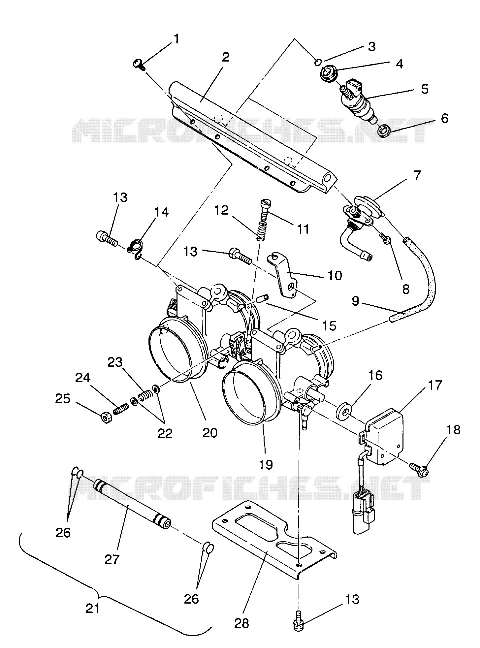

THROTTLE BODYWORK 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296033A)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296032A)
by
FUEL PUMP 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296034A)
THROTTLE BODYWORK 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296033A)
1
SCREW
3084359
Not Available
2
PIPE FUEL DELIVERY
3084363
Not Available
3
O RING CONNECTOR
3084057
Not Available
4
INSULATOR UPPER
3084058
Not Available
5
INJECTOR FUEL
3084056
Not Available
6
INSULATOR LOWER
3084059
Not Available
7
REGULATOR ASM.
3084351
Not Available
8
SCREW
3084065
Not Available
9
PIPE RUBBER
3084393
Not Available
10
WIRE STAY (Wire)
3084364
Not Available
11
SCREW ADJUST.
3084068
$9,44 Unit Price incl. VAT
12
SPRING
3084069
Not Available
13
SCREW
3084392
Not Available
14
CLAMP HOSE
3084312
Not Available
15
CAP RUBBER
3084077
Not Available
16
GASKET
3084385
Not Available
17
SENSOR THROTTLE POS. Substituted by 3084616
3084055
Not Available
18
SCREW
3084064
Not Available
19
THROTTLEBODY ASM #3
3084481
Not Available
20
THROTTLEBODY ASM #1
3084480
$395,84 Unit Price incl. VAT
21
THROTTLEBODY ASM.
3084350
Not Available
22
WASHER(10)
3084070
Not Available
23
SPRING
3084071
Not Available
24
SCREW ADJUST.
3084073
$18,68 Unit Price incl. VAT
25
NUT
3084072
Not Available
26
O RING
3084063
Not Available
27
JOINT PIPE
3084062
Not Available
28
STAY PLATE Substituted by 3084352
3084391
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
