1
Engine displacement
800
2
Year
2016
3
Trim
800 RMK 155
4
Parts Catalog

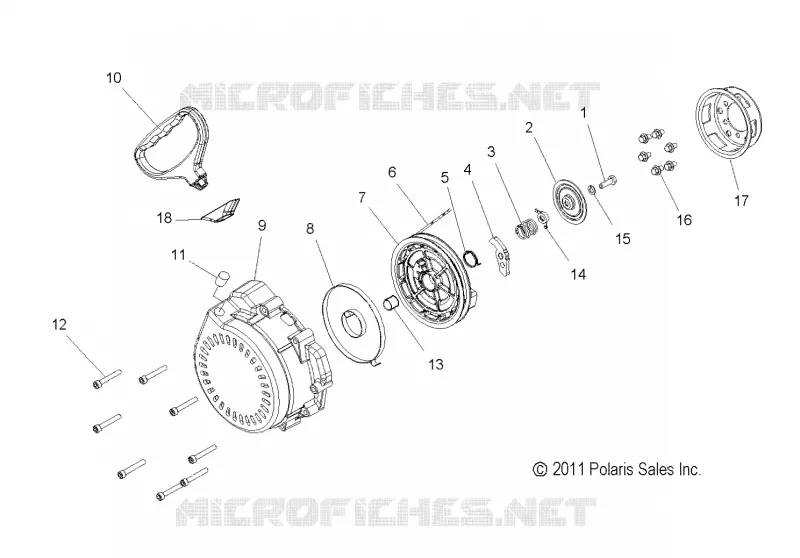

RECOIL STARTER
5
Parts Diagram
Parts Catalog
OIL PUMP AND LINES
by
LOWER STEERING
RECOIL STARTER
-
6
7
8
9
10
11
12
13
14
15
16
17
18
6
7
8
8
-
ASM. RECOIL [INCL. 1-9 11 13-15]
1204331
$398,99 Unit Price incl. VAT
1
SCREW
7517984
$9,44 Unit Price incl. VAT
2
PLATE-FRICTION
3021650
$52,49 Unit Price incl. VAT
3
SPRING FRICTION
3022313
$47,24 Unit Price incl. VAT
4
RATCHET
5247844
$36,74 Unit Price incl. VAT
5
SPRING RETURN
3022314
$68,24 Unit Price incl. VAT
6
ROPE-RECOIL
3040169
$47,24 Unit Price incl. VAT
7
REEL RECOIL
3022317
$157,49 Unit Price incl. VAT
8
SPRING SPIRAL
3021648
$52,80 Unit Price incl. VAT
9
HOUSING RECOIL STARTER
5632494
$225,74 Unit Price incl. VAT
10
HANDLE RECOIL BLACK
5435154070
$16,79 Unit Price incl. VAT
11
BUSHING ROPE SLIDE
3040171
$6,08 Unit Price incl. VAT
12
SCR-M6X1.0X40 HX/SOC/CP-Y/D
7510005
$9,44 Unit Price incl. VAT
13
BUSHING CENTER
3022316
$13,64 Unit Price incl. VAT
14
GUIDE RATCHET
3022324
$26,24 Unit Price incl. VAT
15
WASHER
7556319
7557158
$7,34 Unit Price incl. VAT
16
SCREW
7517278
$10,49 Unit Price incl. VAT
17
PULLEY STARTER RECOIL
3021618
$47,24 Unit Price incl. VAT
18
ISOLATOR RECOIL HANDLE
5414288
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
