1
Engine displacement
0
2
Year
1996
3
Trim
EURO STORM SKS - E965582
4
Parts Catalog

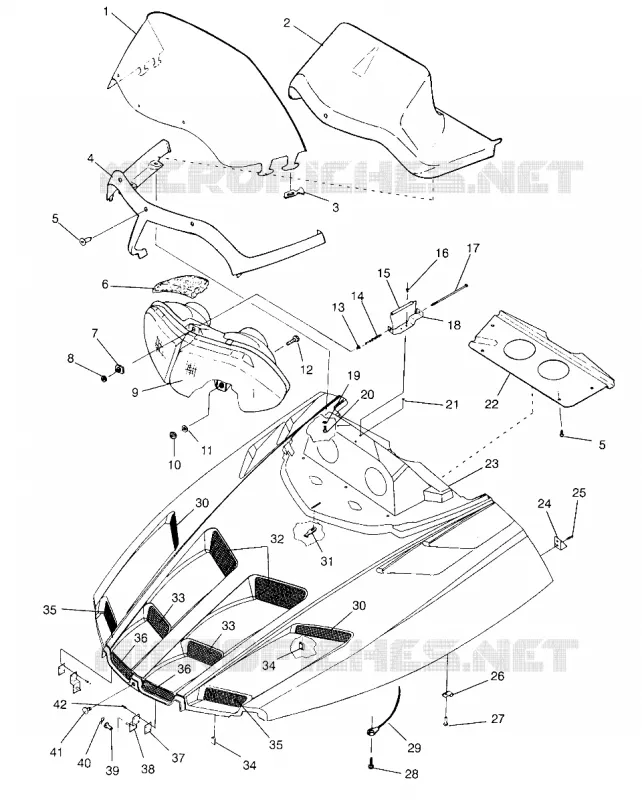

HOOD
5
Parts Diagram
Parts Catalog
CONSOLE WIRE HARNESS
by
INSTRUMENTS
HOOD
1
WNDSHLD LOW SMOKE(AGR) (Storm RMK)
5432266
Not Available
1
WNDSHLD CLR STD AGR. (SKS)
5432267
Not Available
2
HOUSING INST.
5431780070
Not Available
3
RETAINER WINDSHIELD
5410970
$2,09 Unit Price incl. VAT
4
RETAINER W/S BLK.MET. Substituted by 5432573-177
5431785177
Not Available
5
RIVET PLASTI-LOC
7621509
$2,09 Unit Price incl. VAT
6
FOAM-HEADLIGHT
5811094
Not Available
7
NUT H/L.PIVOT
5431901
Not Available
8
NUT-WELL(10)
7541920
Not Available
9
H/L ASM. (Incl. Bulbs)
2431009
Not Available
9
BULB HALOGEN
2870448
$36,74 Unit Price incl. VAT
10
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
11
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
12
SCREW(10)
7512222
$4,19 Unit Price incl. VAT
13
WASHER SPECIAL
5020811
Not Available
14
SPRING ADJ.H/L
7041397
Not Available
15
SPACER TUBE
5333296
Not Available
16
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
17
SCREW ADJ. H/L.(10)
4032072
Not Available
18
BRKT H/L ADJUST
5240757067
Not Available
19
BURR-RIVET
7555904
$1,56 Unit Price incl. VAT
20
SCREW-#10X3/4-HI/LO-PN-T25 TRX-M
7512026
$2,09 Unit Price incl. VAT
21
WASHER FLAT
7558212
$1,56 Unit Price incl. VAT
22
PLENUM AIR INTAKE HD. Substituted by 5432665
5431991
Not Available
23
HOOD AGR STORM FOAM FOIL Substituted by 2631895-177 (Incl. Foam & Foil)
2631689177
Not Available
24
CUP HOOD LATCH
5430733
$10,49 Unit Price incl. VAT
25
RIVET-5/32 BULBEX-B
7621334
$2,09 Unit Price incl. VAT
26
CLAMP RETAINER
7080372
$7,34 Unit Price incl. VAT
27
CABLE-HOOD RETAINER
7080569
Not Available
28
SCREEN LH SIDEUPP.LOUVER Substituted by 5241146-067
5241145067
Not Available
28
SCREEN RH SIDEUPP.LOUVER
5241146067
Not Available
29
RETAINER-TAB (10)
5411075
Not Available
30
SCREEN RH CTR UPP.LOUVER
5241142067
$31,80 Unit Price incl. VAT
30
SCREEN LH CTR UPP.LOUVER Substituted by 5241142-067
5241141067
Not Available
31
SCREEN LH CTR MID.LOUVER Substituted by 5241140-067
5241139067
Not Available
31
SCREEN CTR MID.LOUVER
5241140067
Not Available
32
SPEEDCLIP #U#TYPE(10)
7670082
Not Available
33
SCREEN RH SIDELOW.LOUVER
5241144067
Not Available
33
SCREEN LH SIDELOW.LOUVER Substituted by 5241144-067
5241143067
Not Available
34
SCREEN LOUVER CTR.LOW.
5241138067
Not Available
35
PLATE HINGE BLK.
5211536067
Not Available
36
HINGE UPPER RH
1012247067
Not Available
36
HINGE UPPER LH
1012246067
Not Available
37
BUSHING HINGE
5431884
Not Available
38
PIN HITCH
7661644
$4,19 Unit Price incl. VAT
39
MOUNT CABLE TIE(10)
7080589
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
