1
Engine displacement
700
2
Year
1999
3
Trim
700 RMK - 099SR7ASA
4
Parts Catalog

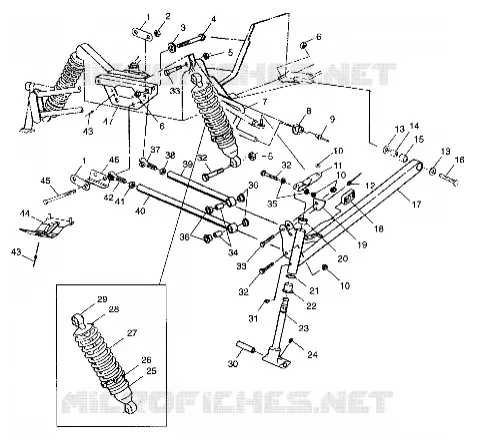

FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
HOOD
by
STEERING
FRONT SUSPENSION
1
STRAP-SPACER BOTTOM
5211345
$19,94 Unit Price incl. VAT
2
NUT FLEX (10)
7542703
Not Available
3
WASHER THRUST(10)
7558702
$3,14 Unit Price incl. VAT
4
BOLT(10)
7512551
Not Available
5
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
6
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
7
BAR SWAY (RMK)
5224757067
Not Available
8
BUSHING SWAY BAR (XLT SKS)
5432412
$27,29 Unit Price incl. VAT
9
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
10
Nut
7542403
Not Available
11
ARM RH STRG BLK.
5241661067
Not Available
11
ARM LH STRG BLK.
5241660067
Not Available
12
RIVET(50) Substituted by 7661130
7661643
7661130
$2,09 Unit Price incl. VAT
13
WASHER
7555721
$2,09 Unit Price incl. VAT
14
BUSHING
5010310
$19,94 Unit Price incl. VAT
15
PIVOT RUBBER
5410872
$15,74 Unit Price incl. VAT
16
BOLT(10)
7512557
$11,54 Unit Price incl. VAT
17
ARM TRLG LH CRC. Substituted by 2201470 (Incl. 13 14)
1822517
Not Available
17
ARM TRLG RH CRC. Substituted by 2201471 (Incl. 13 14)
1822518
Not Available
18
SLIDE SWAYBAR 9/16
5432674
Not Available
19
STOP RH STRG BLK.
5241778067
$29,28 Unit Price incl. VAT
19
STOP LH STRG BLK
5241777067
Not Available
20
BUSHING FLANGE
3573909
$4,19 Unit Price incl. VAT
21
BUSHING
7556509
$3,14 Unit Price incl. VAT
22
BUSHING FLANGED
3574208
$6,29 Unit Price incl. VAT
23
SHAFT SPINDLE TRLG BLK
6230102067
$440,99 Unit Price incl. VAT
24
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
25
RETAINER SPRING BODY THD. [1 PER SHOCK]
1500063
$83,99 Unit Price incl. VAT
26
RING SPRING PRELOAD ADJ. [1 PER SHOCK]
5431734
$104,99 Unit Price incl. VAT
27
SPRING COMP. IFS 100# BLK
7041551067
$115,49 Unit Price incl. VAT
28
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
29
SHOCK GAS IFS (RMK)
7041543
Not Available
30
BUSHING [BEA]
5010158
$27,29 Unit Price incl. VAT
31
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
32
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
33
SCREW
7515415
$2,09 Unit Price incl. VAT
34
BUSHING
5010127
$12,59 Unit Price incl. VAT
35
Washer .105
7555832
$4,19 Unit Price incl. VAT
36
BUSHING PIVOT RADIUS ROD OUTER
5431486
$6,29 Unit Price incl. VAT
37
ROD END 7/16 LINED Substituted by 7061049
7061010
Not Available
38
NUT JAM(10)
7542520
$4,19 Unit Price incl. VAT
39
ROD RAD UPPER BLK (RMK)
1822446067
Not Available
40
ROD RAD LOWER BLK (RMK)
1822444067
$115,49 Unit Price incl. VAT
41
NUT-1/2-20 HX JM-Y
7542711
$4,19 Unit Price incl. VAT
42
RODEND 1/2 W/LINER 1.05 WIDE Substituted by 7061052
7061027
7061052
$99,74 Unit Price incl. VAT
43
RIVET INTERLOCK B(50)
7661638
$2,09 Unit Price incl. VAT
44
BRACE PAN LOWER
5242575067
$47,24 Unit Price incl. VAT
45
BOLT(10)
7512684
Not Available
46
BRKT. RADIUS ROD BOTTOM
5242578
$68,24 Unit Price incl. VAT
47
BRACE FR.BULKH. BLK Substituted by 5242112-067
5241641067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
