1
Engine displacement
0
2
Year
2006
3
Trim
HAWKEYE 2X4/4X4 - A06LB27AA
4
Parts Catalog
TRANSMISSION INTERNALS
5
Parts Diagram
Parts Catalog
TRANSMISSION CASES
by
FRONT GEARCASE, MOUNTING (4X4)

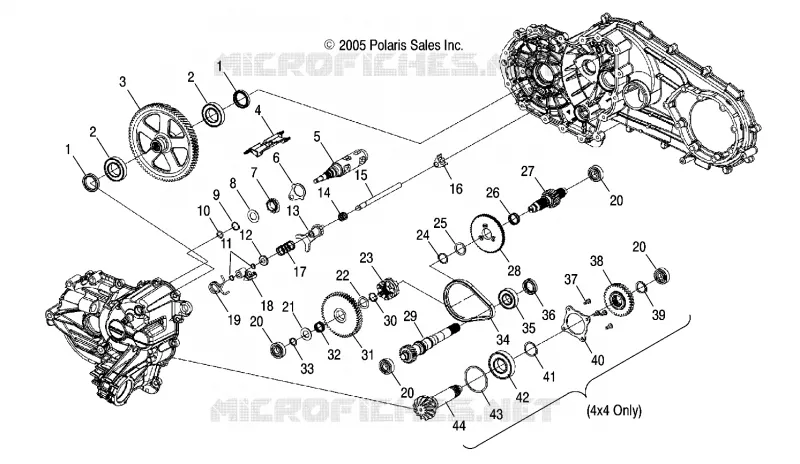

TRANSMISSION INTERNALS
-
-
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
-
Asm. Transmission Shaft 4x4
1332374
$1 121,39 Unit Price incl. VAT
-
Asm. Transmission Shaft 2x4
1332403
$1 230,59 Unit Price incl. VAT
1
SEAL-35x47x8
3234307
$31,49 Unit Price incl. VAT
2
BEARING BALL 6007 C3 35 X 62 X 14
3233265
$68,24 Unit Price incl. VAT
3
Subasm. Gear 77T [Incl. 2]
1332915
$316,04 Unit Price incl. VAT
4
Trough Oil
3234254
$17,21 Unit Price incl. VAT
5
Drum Shift
3234341
Not Available
6
Spacer
3234337
Not Available
7
Star Detent
3234250
$17,21 Unit Price incl. VAT
8
Washer Thrust
3234314
$18,68 Unit Price incl. VAT
9
Ring Retaining
3234335
$18,68 Unit Price incl. VAT
10
O-RING
3234302
$13,64 Unit Price incl. VAT
11
RING RETAINING BASIC EXTERNAL 0.428
3234090
$19,94 Unit Price incl. VAT
12
WASHER CUP
3234091
$17,84 Unit Price incl. VAT
13
Fork Shift
3234328
$59,42 Unit Price incl. VAT
14
SPRING COMPRESSION 0.46 I.D. X 0.73
3234089
$52,49 Unit Price incl. VAT
15
Rail Shift Shaft
3234253
Not Available
16
COLLAR SHIFT
3234073
$57,74 Unit Price incl. VAT
17
SPRING COMPRESSION .92 O.D. X 2.000
3234078
$47,24 Unit Price incl. VAT
18
Pawl Detent
3234251
Not Available
19
Spring Torsion
3234255
Not Available
20
BEARING BALL 6203 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
21
Washer Thrust
3234319
Not Available
22
WASHER 1.250 X 0.876 X 0.05
3233855
$19,94 Unit Price incl. VAT
23
DOG ENGAGEMENT 6 FACE
3234258
$178,49 Unit Price incl. VAT
24
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
25
WASHER THRUST 1.300 X 0.995 X 0.065
3234248
$17,84 Unit Price incl. VAT
26
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
27
Shaft Reverse 15T
3234323
Not Available
28
Sprocket 52T
3234332
$225,74 Unit Price incl. VAT
29
Shaft Input 17T
3234357
Not Available
30
RING RETAINING BASIC EXTERNAL DIA 0.84
3234336
$10,49 Unit Price incl. VAT
31
Gear 50T
3234320
Not Available
32
BEARING NEEDLE
3233718
$60,89 Unit Price incl. VAT
33
RING RETAINING EXTERNAL SHR-66
3234318
$5,76 Unit Price incl. VAT
34
Chain
3234321
Not Available
35
BEARING
3233019
$54,59 Unit Price incl. VAT
36
Seal Triple Lip
3234322
$57,74 Unit Price incl. VAT
37
SCREW 6-LOBE PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
38
Gear 31T [4x4]
3234334
Not Available
39
RING RETAINING BASIC EXTERNA
3234327
$13,64 Unit Price incl. VAT
40
COVER BEARING CENTER DRIVE
3234063
$62,99 Unit Price incl. VAT
41
Ring Retaining [4x4]
3234310
$6,81 Unit Price incl. VAT
42
BEARING BALL 6207 C3 35MMX72MMX17MM
3234065
$80,84 Unit Price incl. VAT
43
Shim [4x4]
3234326
Not Available
44
Pinion 13T [4x4]
3234325
$205,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
