1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 TOURING EPS EU
4
Parts Catalog

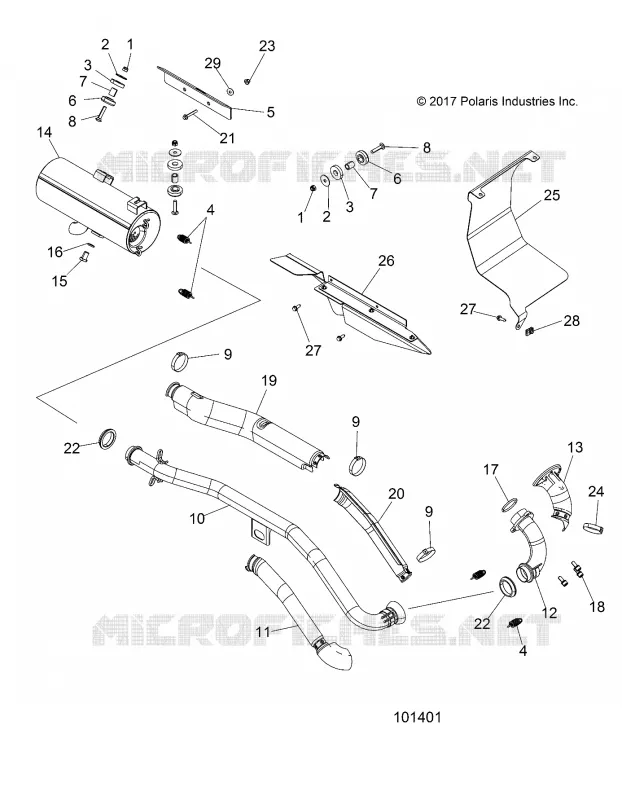

EXHAUST
5
Parts Diagram
Parts Catalog
CYLINDER HEAD, CAMS AND VALVES
by
LONG BLOCK
EXHAUST
1
1
2
2
3
3
4
4
5
6
6
7
7
8
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
27
28
29
1
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
2
WASHER-.328X1.25X16GA FL-Y
7555716
$3,14 Unit Price incl. VAT
3
WSHR-15.4X38.1X7.9 RUBBER
5414945
$9,44 Unit Price incl. VAT
4
SPRING EXHAUST
7041804
$16,79 Unit Price incl. VAT
5
BRKT-SILENCER FRAME PLTD
5263678
$68,24 Unit Price incl. VAT
6
DAMPER-VIBRATION
5414946
$9,44 Unit Price incl. VAT
7
BUSHING-.459 X.625 X.75
5010192
$12,59 Unit Price incl. VAT
8
BOLT CARRIAGE
7515316
$4,19 Unit Price incl. VAT
9
CLAMP-HOSE 2.00-SS
7082359
$25,19 Unit Price incl. VAT
10
ASM-EXHAUST PIPE 570 EFI SS [INCL. PIPE SHIELDS CLAMPS]
1263100
$545,99 Unit Price incl. VAT
11
SHIELD-HEAT EXHAUST MID
5260801
$120,74 Unit Price incl. VAT
12
WELD-MANIFOLD
1263099
$278,24 Unit Price incl. VAT
13
SHIELD-HEAT EXHAUST HEADPIPE
5260800
$68,24 Unit Price incl. VAT
14
WELD-EXHAUST SILENCER [INCL. 1-3]
1263139
1263784
$703,49 Unit Price incl. VAT
15
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7520756
$10,49 Unit Price incl. VAT
16
WASHER-CLEAN OUT .51X75X.09
7557077
$14,69 Unit Price incl. VAT
17
GASKET-EXHAUST SEALING
5253989
$52,49 Unit Price incl. VAT
18
SCR-M8X1.25X20 HXSOC-CSSPL-SEM
7517555
$15,74 Unit Price incl. VAT
19
SHIELD-HEAT EXHAUST REAR
5260802
5265059
$136,49 Unit Price incl. VAT
20
SHIELD-HEAT EXHAUST MID INNER
5260808
$125,99 Unit Price incl. VAT
21
SCREW HXFL-5/16-18X0.75 GR5 ZY3
7518341
$9,44 Unit Price incl. VAT
22
SEAL EXHAUST
5256385
$52,49 Unit Price incl. VAT
23
NUT-5/16-18 HX FLG NL-Y [INTL]
7542343
$9,44 Unit Price incl. VAT
24
CLAMP-45.0DX7W 304SS OETIKER
7082132
$9,44 Unit Price incl. VAT
25
SHIELD-FUEL TANK FRAME MNT TRG
5262925
$52,49 Unit Price incl. VAT
26
SHIELD-HEAT AIRBOX
2636957
$89,24 Unit Price incl. VAT
27
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
28
NUT-CHIMNEY 1/4-20 GR-5
7670096
$3,14 Unit Price incl. VAT
29
WASHER-FL 10.7X21.9X2.5-Y
7556099
$3,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
