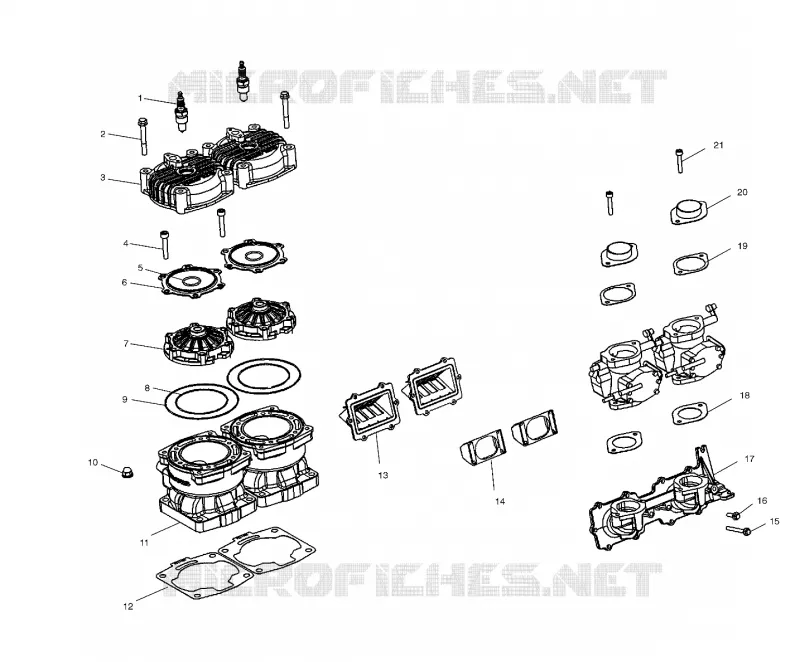

CYLINDER   MANIFOLD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
Plug Spark NGK BR9ES
3070163
$7,34 Unit Price incl. VAT
2
BOLT(10)
7516722
$15,42 Unit Price incl. VAT
3
COVER HEAD RED BIG BORE
5630527093
Not Available
4
SCREW S.S.
7517352
$23,09 Unit Price incl. VAT
5
O-RING(10)
5410917
$1,56 Unit Price incl. VAT
6
RING HEAD 81MM-SS
5241944
$85,88 Unit Price incl. VAT
7
HEAD CYL 84MM PWC MSV
3021122
Not Available
8
O-RING-90MMX94MMX2MM HI-TEMP
5411573
Not Available
9
O-RING
5410931
$11,54 Unit Price incl. VAT
10
NUT
7547021
Not Available
11
CYLINDER-84MM PWC
3021017
Not Available
12
GASKET-CYLINDER BASE
5811784
$15,74 Unit Price incl. VAT
13
VALVE REED
1201825
Not Available
14
STUFFER-REED BLOCK NOK
5433151
Not Available
15
BOLT(10)
7516814
$3,87 Unit Price incl. VAT
16
BOLT(10)
7516807
Not Available
17
Manifold Intake
5630529329
$225,74 Unit Price incl. VAT
18
GASKET CARB.
5830043
Not Available
19
GASKET CARB. UPPER
5830062
$8,39 Unit Price incl. VAT
20
Adaptor Flame Arrestor
2900117
Not Available
21
SCREW
7516406
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
