1
Engine displacement
650
2
Year
2022
3
Trim
650 NORDICPRO 146
4
Parts Catalog
DRIVE TRAIN, CLUTCH, SECONDARY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, CLUTCH, PRIMARY
by
ELECTRICAL, BATTERY/BOX AND CABLES

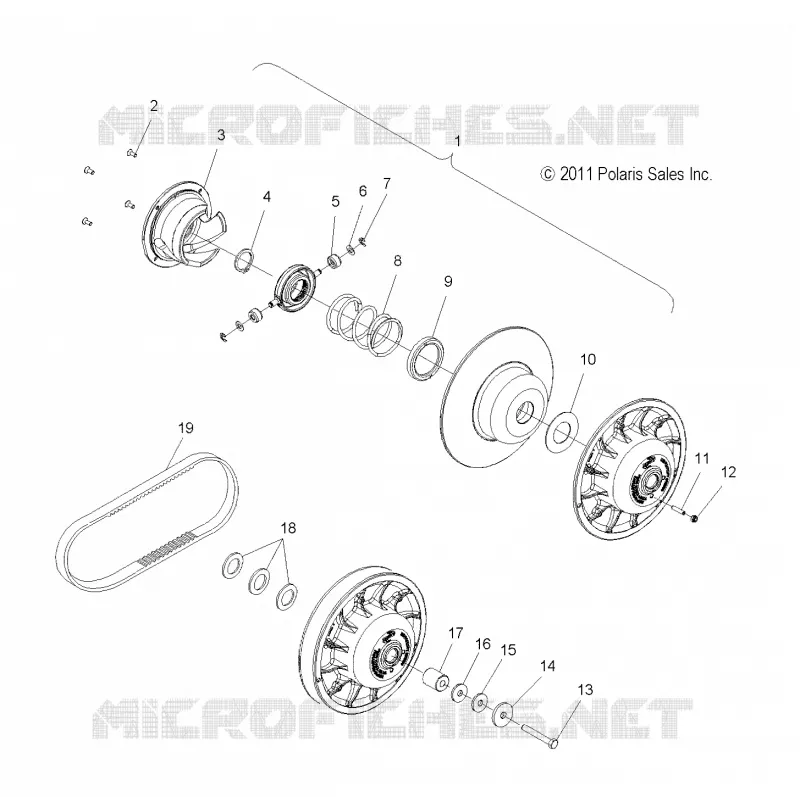

DRIVE TRAIN, CLUTCH, SECONDARY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
1
1
2
2
3
3
4
5
5
5
6
6
7
8
9
10
10
11
11
11
11
12
13
14
15
1
ASM-DRVN CLTCH TEAM BSC LWTSPL [INCL. 4-7 9-12]
1323856
$908,24 Unit Price incl. VAT
1
SCR-HH M10X40 10.9 ZPC P80
7519223
$7,34 Unit Price incl. VAT
2
SCREW
3235592
$10,49 Unit Price incl. VAT
2
WSHR-M10 SPRING LOC ZPC
7556558
$4,19 Unit Price incl. VAT
3
RAMP-58/44/.36 BA35 ER LWT
5143872
$309,74 Unit Price incl. VAT
3
WSHR-M10.5X25X2.4 ZPC
7556559
$6,29 Unit Price incl. VAT
4
ARM TORQUE FRONT BLACK
1543734329
$404,24 Unit Price incl. VAT
4
RING RETAINING
7710583
$36,74 Unit Price incl. VAT
5
ROLLER-BTD 9.58X28.83X13.97 CE
3514929
$52,49 Unit Price incl. VAT
5
FITTING-LUBRICATION 1/4-28
7080424
$9,44 Unit Price incl. VAT
6
WASHER THRUST
7556226
$10,49 Unit Price incl. VAT
6
WASHER
7556581
$7,34 Unit Price incl. VAT
7
ARM SHOCK PIVOT
1542765329
$104,99 Unit Price incl. VAT
7
RET.E-RING-E T.375-TEAM#130059
7710523
$5,24 Unit Price incl. VAT
8
SPRING-DRVN CLTCH.LH BLK [HIGH ELEVATION SET-UP]
7043063
$115,49 Unit Price incl. VAT
8
SHAFT CROSS
5137418
$62,99 Unit Price incl. VAT
9
SHAFT-20.32 X 391.41 HOLLOW
5138059
$115,49 Unit Price incl. VAT
9
WASHER THRUST
7556728
$36,74 Unit Price incl. VAT
10
WASHER
7556370
$41,99 Unit Price incl. VAT
10
NUT- M8X1.25 FLG NYLOC-OLIVE D
7547332
$7,34 Unit Price incl. VAT
11
SCREW-SET HEX 1/4-20X1.25
3236575
$9,44 Unit Price incl. VAT
11
WASHER DOMED
7556491
$10,49 Unit Price incl. VAT
12
SCREW M8x30 TR/TX
7518953
$3,14 Unit Price incl. VAT
12
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
13
SCR-HXFL-M10X1.25X40 ZOD NYL
7519254
$11,54 Unit Price incl. VAT
13
BUSHING-18x20x48 FLNG
5438921
$34,64 Unit Price incl. VAT
14
STRAP LIMITER
5414031
$47,24 Unit Price incl. VAT
14
WASHER-FLAT 3/8 TYPE B(W)-SS
7555846
$10,49 Unit Price incl. VAT
15
SCR-TXTH-M8X1.25X35 8.8 ZOD
7519238
$11,54 Unit Price incl. VAT
15
Washer .105
7555832
$4,19 Unit Price incl. VAT
16
WASHER
7555806
$1,56 Unit Price incl. VAT
17
SPACER CLUTCH
5137323
$15,74 Unit Price incl. VAT
18
WASHER-1.000X1.254X.023-Z
7555917
$4,19 Unit Price incl. VAT
18
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
18
BUSHING
7556509
$3,14 Unit Price incl. VAT
19
BELT-DRIVE 10.625CD CVTMBL MID
3211165
$278,24 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
