1
Engine displacement
650
2
Year
2022
3
Trim
650 NORDICPRO 146
4
Parts Catalog
ENGINE, PISTON AND CRANKSHAFT
5
Parts Diagram
Parts Catalog
OIL PUMP ASM.
by
ENGINE, RECOIL STARTER

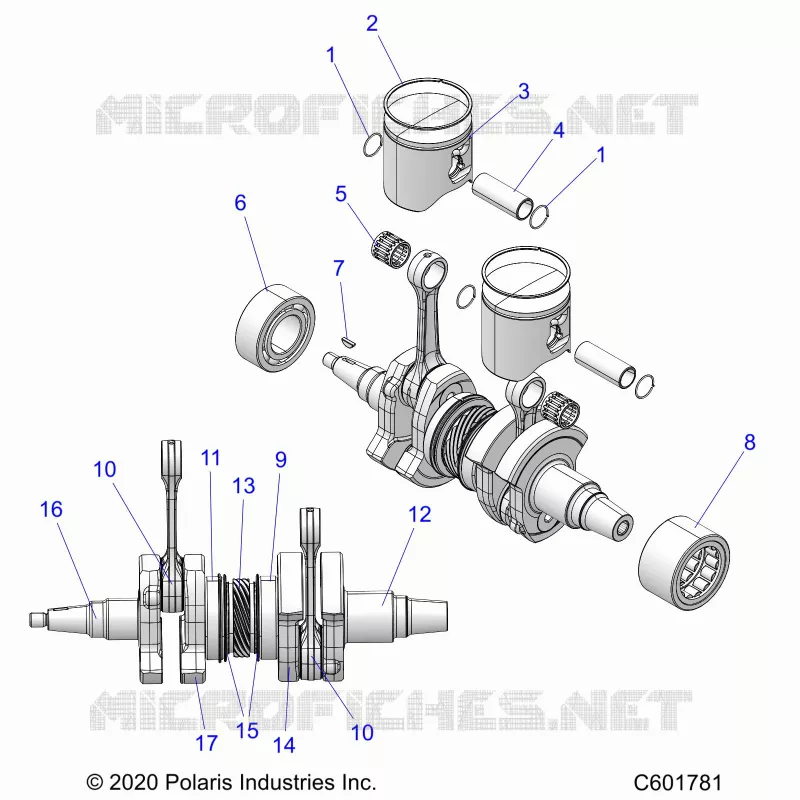

ENGINE, PISTON AND CRANKSHAFT
-
-
1
1
2
3
4
5
6
7
8
9
10
10
10
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
9
10
11
12
-
K-CRANKSHAFT ASM 650/900 [INCL. 5 6 8-17]
2208740
2211504
$3 039,74 Unit Price incl. VAT
-
K-CONN ROD ASM 74ST FC [INCL. 1 CONN. ROD 2 THRUST WASHER PIN AND 22NDL BEARING]
2208792
$388,49 Unit Price incl. VAT
1
CIRCLIP PISTON
3023343
$27,29 Unit Price incl. VAT
2
K-PISTON RING SNOW 650 [INCL. 1 RING]
2208749
$141,74 Unit Price incl. VAT
3
K-PISTON 650 SNOW [INCL. 1 2 4]
2208741
2212228
$386,39 Unit Price incl. VAT
4
WRENCH-8MMX10MM OPEN END
Not Available
5
BEARING-18NDL 23X28X26 NRB
3514909
$27,29 Unit Price incl. VAT
6
BEARING-BALL 40X80X30.2 DAC
3515006
$182,69 Unit Price incl. VAT
7
KEY WOODRUFF
7721117
$47,24 Unit Price incl. VAT
8
BEARING-PTO 49.5X80X46 RR
3515157
$242,54 Unit Price incl. VAT
9
BEARING BALL
3514389
3515831
$55,43 Unit Price incl. VAT
10
BEARING-22NDL 31X38X19 IKO
3514987
$80,84 Unit Price incl. VAT
10
WASHER-THRUST 31X51X1
5140944
$18,89 Unit Price incl. VAT
11
BEARING-BALL 40X80X18 SR
3514996
$149,09 Unit Price incl. VAT
12
CRANKWEB-74MM PTO
5142849
$666,74 Unit Price incl. VAT
13
GEAR-COLLAR PUMPDRIVE
5140946
5144456
$535,49 Unit Price incl. VAT
14
CRANKWEB-CTR 74MM PTO
5140942
$577,49 Unit Price incl. VAT
15
SEAL-OIL CTR KOK
5141297
5144433
$78,74 Unit Price incl. VAT
16
CRANKWEB-74MM MAG
5142850
$666,74 Unit Price incl. VAT
17
CRANKWEB-CTR 74MM MAG
5140941
$577,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
