Engine displacement
600
2
Year
2004
3
Trim
A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV
4
Parts Catalog
ELECTRICAL/TAILLIGHT
5

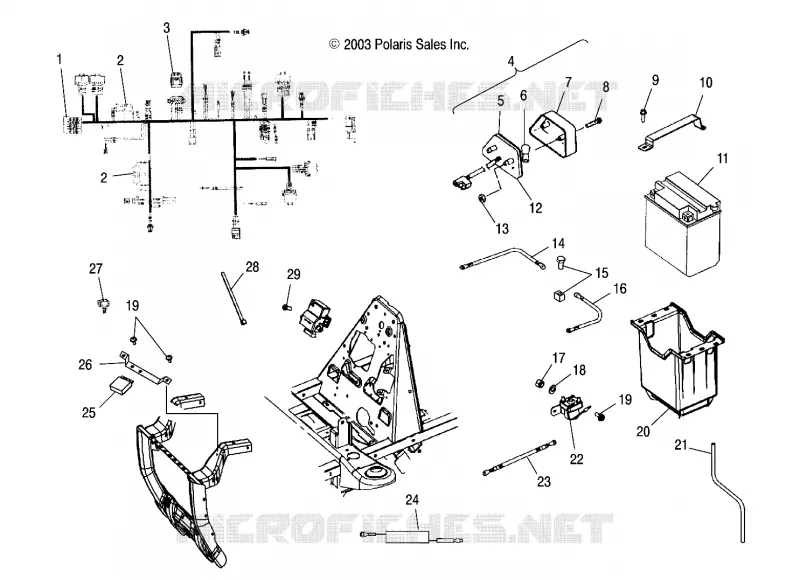

Parts Diagram
Parts Catalog
REAR SUSPENSION
by
GEARCASE
ELECTRICAL/TAILLIGHT
1
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
25
25
26
27
28
29
1
Harness Main [If built after 2/17/03]
2461177
Not Available
1
LINK-FUSIBLE 0.5mm sq. X 160mm LONG (GY)
2202147
$125,99 Unit Price incl. VAT
1
Harness Main [If built before 2/17/03]
2460976
Not Available
2
Circuit Breaker 20 AMP
2410323
$125,99 Unit Price incl. VAT
3
Kit Harness Resistor Module
2204890
$257,24 Unit Price incl. VAT
4
Asm. Taillight [Incl. 15-19]
2410320
$115,49 Unit Price incl. VAT
5
GASKET TAILLIGHT
4032045
$7,34 Unit Price incl. VAT
6
BULB TAILLIGHT
4030043
$12,59 Unit Price incl. VAT
7
LENS-TAILLIGHT
4032046
$62,99 Unit Price incl. VAT
8
SCREW-TAILLIGHT
4032029
$9,44 Unit Price incl. VAT
9
SCR-1/4-20X5/8 TAP/R-Y
7517386
$2,09 Unit Price incl. VAT
10
Strap Battery Holddown
5247376
$26,24 Unit Price incl. VAT
11
BATTERY 30 AMP TOP MOUNT
4010630
$209,99 Unit Price incl. VAT
12
Backing Taillight/Brakelight
4032064
$152,24 Unit Price incl. VAT
13
SPEED NUT-WASHER HEAD-1/4
7670054
$2,09 Unit Price incl. VAT
14
Cable Black
4010470
Not Available
15
KIT-BATTERY BOLT 30AH
2202099
$9,44 Unit Price incl. VAT
16
Cable Battery/Solenoid
4010471
Not Available
17
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
18
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
19
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
20
Box Battery
5434037
$47,24 Unit Price incl. VAT
21
TUBE-BATTERY VENT 650 MM [NOT ILLUSTRATED]
5432077
$16,79 Unit Price incl. VAT
22
SWITCH MAGNETIC *
3087196
4011335
$115,49 Unit Price incl. VAT
23
Cable Solenoid/Starter
4010376
$89,24 Unit Price incl. VAT
24
Jumper Harness [If built before 3/31/03]
2410411
Not Available
25
Rectifier Regulator LR-390
4010929
2204317
$367,49 Unit Price incl. VAT
25
Rectifier Regulator (If built after 4/05/04)
4011053
$976,49 Unit Price incl. VAT
25
Rectifier Regulator
4010796
2203638
$325,49 Unit Price incl. VAT
26
Sink Heat
5133182
Not Available
27
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
28
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
29
SCR-#10-24-5/8-PN/TORX-M
7512027
$2,09 Unit Price incl. VAT
