1
Engine displacement
550
2
Year
2012
3
Trim
SPORTSMAN XP TOURING EPS 550 INTL - A12DN5EFR
4
Parts Catalog

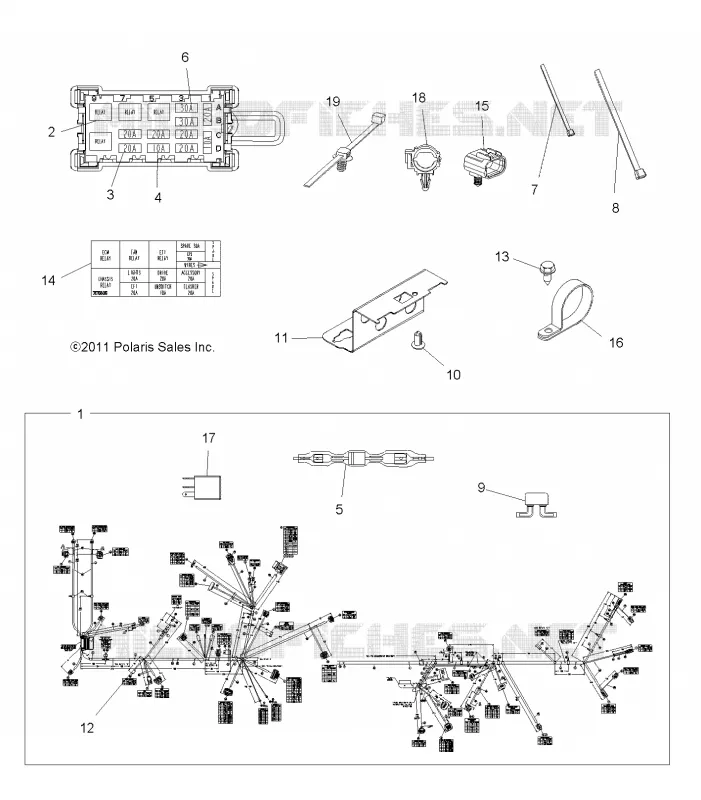

WIRE HARNESS
5
Parts Diagram
Parts Catalog
GAUGES INDICATORS
by
HEADLIGHTS
WIRE HARNESS
-
1
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
-
Kit Harness Resistor Module
2204890
$257,24 Unit Price incl. VAT
1
KIT HARNESS TPS
2878498
$220,49 Unit Price incl. VAT
1
COVER-RELAY/FUSE CENTER
5438758
$23,09 Unit Price incl. VAT
1
Harness Main [Incl. 1-6 9 12 14 17 All Kits]
2411401
$755,99 Unit Price incl. VAT
2
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
3
FUSE-PARK 20 AMP
2434017
4012811
$15,74 Unit Price incl. VAT
4
FUSE-IGNITION 10 AMP
2434016
$10,49 Unit Price incl. VAT
5
DIODE - 6 AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
6
FUSE-MAIN 30 AMP
2434015
$15,74 Unit Price incl. VAT
7
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
8
CABLE-TIE 25-76MM WEATH.-RES.
7080492
$5,24 Unit Price incl. VAT
9
BREAKER CIRCUIT 10 AMP
2410692
$52,49 Unit Price incl. VAT
10
FASTNER-PUSH-ON CLIP .250
7670125
$11,54 Unit Price incl. VAT
11
Bracket Fuse Block
5253502
$12,59 Unit Price incl. VAT
12
KIT FUSIBLE LINK 1.0 MM
2202670
$68,24 Unit Price incl. VAT
12
KIT FUSIBLE LINK .8 MM
2202607
$73,49 Unit Price incl. VAT
13
SCR-#14X3/4 LG HI/LO/TAPER-M
7512095
$9,44 Unit Price incl. VAT
14
Label Fuse Box [Built 1/01/09 and Before]
7175635
Not Available
15
COVER - DIAGNOSTIC W/ CLIP
4012170
$16,79 Unit Price incl. VAT
16
Clamp Hose
7080807
$17,84 Unit Price incl. VAT
17
Kit Relay EPS Repair [Incl. 4010725 Wire Harness Repair Connectors Shrink Tubes Instructions]
2204853
$152,24 Unit Price incl. VAT
18
CLIP ROUTING .472 B.D. HINGED
7670116
$10,49 Unit Price incl. VAT
19
CLIP-ROUTING
7081496
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
