1
Engine displacement
780
2
Year
1997
3
Trim
SLT 780 - B974588
4
Parts Catalog

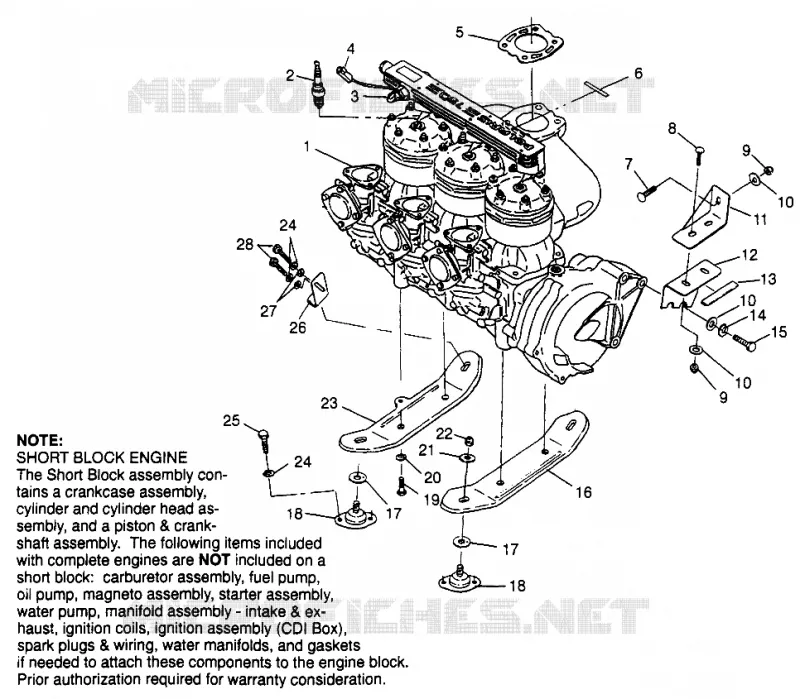

ENGINE MOUNTING SLT 780 B974588 (4941174117B001)
5
Parts Diagram
Parts Catalog
STEERING SLT 780 B974588 (4941174117A014)
by
DRIVE SYSTEM SLT 780 B974588 (4941174117B002)
ENGINE MOUNTING SLT 780 B974588 (4941174117B001)
1
2
3
4
5
6
7
8
9
9
10
10
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
24
25
26
27
28
1
ENG.(S.B.)EC78PWE02
3240286
Not Available
2
SPARKPLUG BPR-8ES(10)
3070174
Not Available
3
SWITCH TEMP.
4110174
Not Available
4
SWITCH THERMO
3240223
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
DECAL WARN.ELEC.OPER.
7073712
Not Available
7
BOLT(10)
7515516
$11,54 Unit Price incl. VAT
8
BOLT(10)
7515517
Not Available
9
NUT HEX S.S.(10)
7542455
$1,56 Unit Price incl. VAT
10
WASHER FLAT(10)
7555841
Not Available
11
MOUNT (SLX)
1060118
Not Available
12
BRACE MUFFLER
5240702
Not Available
13
EDGE TRIM-BLACK 10 CM
836001210
$83,99 Unit Price incl. VAT
14
WASHER LOCK SS.(10)
7552608
Not Available
15
BOLT S.S.(10)
7516914
Not Available
16
PLATE R.MT CAST (FUJI)
5630577
Not Available
17
SHIM ENG.MT.(PWC)
5211727
Not Available
18
MT ENG ANTI-ROTATION Substituted by 3021103
3110055
Not Available
19
BOLT S.S.(10)
7512573
$2,82 Unit Price incl. VAT
20
WASHER LOCK S.S.
7552609
$2,82 Unit Price incl. VAT
21
WASHER FLAT S.S.(10) (.02)
7555848
Not Available
22
NUT NYLOK S.S.(10) Substituted by 7547001
7542725
$4,61 Unit Price incl. VAT
23
PLATE CAST F.MT.(FUJI) Substituted by 5630725
5630578
Not Available
24
WASHER LOCK S.S.(10)
7552610
Not Available
25
BOLT S.S.(10)
7515361
$2,82 Unit Price incl. VAT
26
BRKT R.MUFFLER
5241211
Not Available
27
WASHER FLAT S.S. (10)
7555835
$0,93 Unit Price incl. VAT
28
BOLT S.S.(10)
7515357
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
