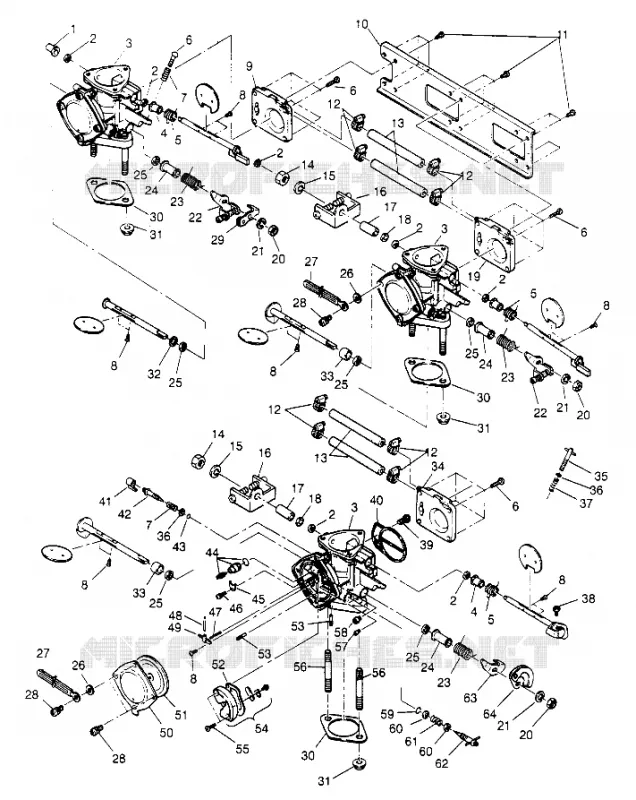

CARBURETOR SL 650 STD B954358 (4932923292C001)
5
Parts Diagram
Parts Catalog
CRANKSHAFT PISTON SL 650 STD B954358 (4932923292B014)
by
DRAIN SL 650 STD B954358 (4932923292C007)
CARBURETOR SL 650 STD B954358 (4932923292C001)
1
2
2
2
2
2
2
2
3
3
3
4
4
5
5
5
6
6
6
6
7
7
8
8
8
8
8
8
8
9
10
11
12
12
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
20
20
20
21
21
21
22
22
23
23
23
24
24
24
25
25
25
25
25
25
26
26
27
27
28
28
28
29
30
30
30
31
31
31
32
33
33
34
35
36
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
53
54
55
56
56
57
58
59
60
60
61
62
63
64
1
RING
3140025
$2,72 Unit Price incl. VAT
2
SEAL
3140022
$7,97 Unit Price incl. VAT
3
CARBURETOR ASM. [Cannot Purchase as Assembly] (Incl. 1-29 32-64)
3140086
Not Available
4
RING
3140021
Not Available
5
SPRING
3140020
$7,97 Unit Price incl. VAT
6
SCREW
3140027
$3,14 Unit Price incl. VAT
7
SPRING
3140054
$2,93 Unit Price incl. VAT
8
SCREW Substituted by 3140065
3140005
Not Available
9
COVER ASM.
3140089
$59,42 Unit Price incl. VAT
10
PLATE
3140008
$132,29 Unit Price incl. VAT
11
SCREW
3140009
Not Available
12
CLAMP
3140028
$15,42 Unit Price incl. VAT
13
HOSE
3140029
Not Available
14
NUT
3140079
Not Available
15
WASHER SPRING
3140078
Not Available
16
SHAFT ASM CHOKE
3140077
$48,18 Unit Price incl. VAT
17
RING
3140076
$5,45 Unit Price incl. VAT
18
RING
3140080
Not Available
19
COVER
3140075
Not Available
20
NUT
3140011
Not Available
21
WASHER SPRING
3140012
Not Available
22
LEVER ASM THROTTLE
3140088
Not Available
23
SPRING
3140003
Not Available
24
RING
3140002
Not Available
25
SEAL
3140001
Not Available
26
WASHER
3140091
Not Available
27
PLATE
3140090
Not Available
28
SCREW (10)
3140046
$3,35 Unit Price incl. VAT
29
LEVER THROTTLE
3140081
Not Available
30
GASKET CARBURETOR (10) (Carburetor)
3240128
Not Available
31
NUT FLANGE (10)
3240058
Not Available
32
PACKING
3140030
Not Available
33
RING
3140032
Not Available
34
COVER
3140087
Not Available
35
SCREW ASM.
3140015
$28,23 Unit Price incl. VAT
36
WASHER
3140014
Not Available
37
SPRING
3140013
Not Available
38
SCREW
3140019
Not Available
39
FILTER
3140039
$11,54 Unit Price incl. VAT
40
O-RING (GASKET)
3140006
Not Available
41
CAP
3140047
$6,71 Unit Price incl. VAT
42
ADJUSTER
3140048
Not Available
43
RING
3140049
$17,84 Unit Price incl. VAT
44
NEEDLEVALVE ASM.
3140040
Not Available
45
PLATE
3140037
Not Available
46
SCREW (10)
3140038
Not Available
47
SPRING(10)
3130491
Not Available
48
PIN
3140036
Not Available
49
ARM
3140041
Not Available
50
COVER
3140045
$3,98 Unit Price incl. VAT
51
DIAPHRAGM ASM.
3140044
Not Available
52
GASKET
3140043
Not Available
53
SCREW (1)
3140018
Not Available
54
BODY ASM.
3140066
Not Available
55
SCREW (10)
3140034
Not Available
56
BOLT
3140026
$30,75 Unit Price incl. VAT
57
JET PILOT #77.5 (#72.5)
3140064
Not Available
58
JET MAIN #87.5 (#87.5)
3140092
$3,98 Unit Price incl. VAT
59
O-RING
3140053
$10,49 Unit Price incl. VAT
60
WASHER
3140052
Not Available
61
SPRING
3140051
$2,93 Unit Price incl. VAT
62
ADJUSTER
3140050
Not Available
63
LEVER THROTTLE
3140004
$19,83 Unit Price incl. VAT
64
LEVER ASM THROTTLE
3140010
$22,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
