1
Engine displacement
325
2
Year
2002
3
Trim
XPEDITION 325 - A02CK32AA
4
Parts Catalog
CLUTCH
5

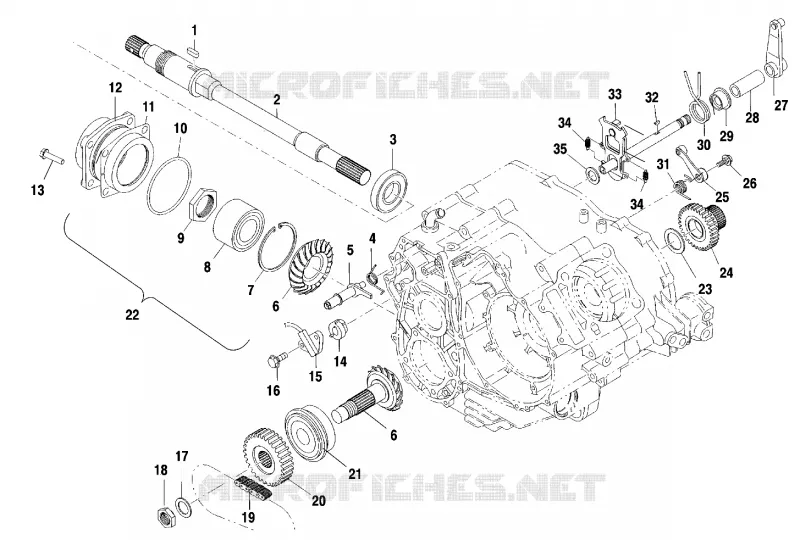

Parts Diagram
Parts Catalog
CLUTCH
by
CLUTCH
CLUTCH
1
2
3
4
5
6
6
7
8
9
10
11
11
11
11
11
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
35
1
1
1
1
1
2
2
2
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
5
5
5
6
6
6
7
8
8
9
10
11
12
13
14
14
15
16
16
17
17
18
19
20
21
1
1
1
1
1
2
2
2
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
5
5
5
6
6
6
7
8
8
9
10
11
12
13
14
14
15
16
16
17
17
18
19
20
21
1
1
1
1
1
2
2
2
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
5
5
5
6
6
6
7
8
8
9
10
11
12
13
14
14
15
16
16
17
17
18
19
20
21
1
KEY
3086330
Not Available
2
SHAFT-OUTPUT
3086324
$369,59 Unit Price incl. VAT
3
SEAL OIL
3086327
Not Available
4
SPRING-REVERSE ARM
3086306
Not Available
5
REVERSE ARM ASM
3086919
Not Available
6
BEVEL AND GEAR SET
3086507
Not Available
7
RING SNAP
3086328
Not Available
8
BEARING-BALL
3086329
$155,39 Unit Price incl. VAT
9
NUT LOCK
3086326
Not Available
10
O-RING
3086331
$10,70 Unit Price incl. VAT
11
SHIM (.175)
3086294
Not Available
11
SHIM (.275)
3086296
Not Available
11
SHIM (.225)
3086295
$3,98 Unit Price incl. VAT
11
SHIM (.3)
3086292
Not Available
11
SHIM (.15)
3086289
Not Available
11
SHIM (.25)
3086291
Not Available
11
SHIM (.2)
3086290
$4,29 Unit Price incl. VAT
11
SHIM (.5)
3086293
Not Available
12
HOLDER BEARING
3086923
Not Available
13
BOLT FLANGE
3086332
$3,14 Unit Price incl. VAT
14
REVERSE CAM ASM
3086917
Not Available
15
SWITCH POSITION
3086920
Not Available
16
BOLT FLANGE
3084566
7518141
$8,39 Unit Price incl. VAT
17
WASHER-LOCK
3086314
Not Available
18
NUT LOCK
3086310
$11,01 Unit Price incl. VAT
19
CHAIN
3086304
Not Available
20
SPROCKET-DRIVEN
3086303
$125,99 Unit Price incl. VAT
21
BEARING-BALL
3086321
Not Available
22
PINION AND SHAFT ASM Substituted by 3086318 (Incl. 1-3 6-10 12 21 22)
3086922
Not Available
23
WASHER
3086380
Not Available
24
GEAR PRIMARY
3086918
$267,74 Unit Price incl. VAT
25
ARM STOPPER
3086302
$29,28 Unit Price incl. VAT
26
BOLT STOPPER ARM
3086311
$21,83 Unit Price incl. VAT
27
ARM RELEASE
3086301
Not Available
28
SPACER
3086317
Not Available
29
SPACER
3086316
Not Available
30
SPRING-RETURN
3086307
Not Available
31
SPRING-STOPPER ARM
3086308
$15,95 Unit Price incl. VAT
32
KEY WOODRUFF
3086312
Not Available
33
SHIFT SHAFT ASM.
3086298
Not Available
34
SPRING-SHIFT
3086309
Not Available
35
SPACER
3086315
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
